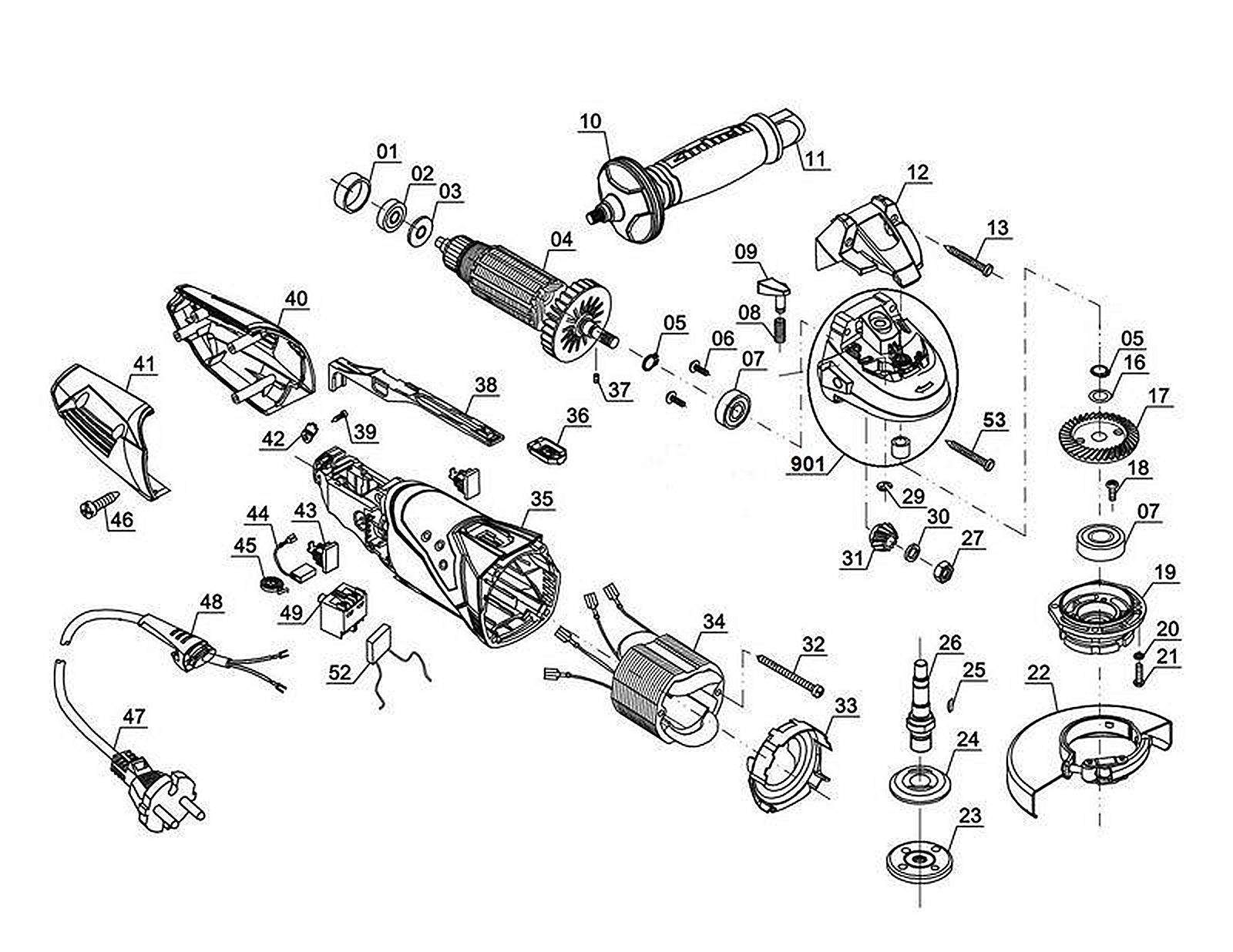

Запасные части и деталировка для УШМ TE-AG 125/750 4430880 (Ident number 11035)
Таблица запчастей для УШМ TE-AG 125/750 4430880 (Ident number 11035)
Позиция | Артикул | |
1 | Bearing set | 443088003001 |
2 | Bearing 607Z | 443088003002 |
3 | Dustproof ring | 443088003003 |
4 | Armature | 443088003004 |
5 | Check ring | 443088003005 |
6 | Screw ST5 x 11 | 443088003006 |
7 | Bearing | 443088003007 |
8 | Spring | 443088003008 |
9 | Stop pin | 443088003009 |
10 | Handle F | 443088003010 |
11 | Spanner | 443088003011 |
12 | Cover | 443088003012 |
13 | Screw ST4 x34 | 443088003013 |
16 | Spring washer | 443088003016 |
17 | Gear | 443088003017 |
18 | Screw ST4 x 10 | 443088003018 |
19 | Front cap | 443088003019 |
20 | Spring washer | 443088003020 |
21 | Screw ST4 x 16 | 443088003021 |
22 | Shield | 443088003022 |
23 | Flange unit | 443088003023 |
24 | Flange | 443088003024 |
25 | Wood ruff-key | 443088003025 |
26 | Spindle | 443088003026 |
27 | Nut | 443088003027 |
29 | Check ring | 443088003029 |
30 | Spring washer | 443088003030 |
31 | Pinion | 443088003031 |
32 | Screw ST4 x 62 | 443088003032 |
33 | Fan guide | 443088003033 |
34 | stator | 443088003034 |
35 | Housing | 443088003035 |
36 | Switch button | 443088003036 |
37 | Roller | 443088003037 |
38 | Switch drawbar | 443088003038 |
39 | Screw ST4 x 13 | 443088003039 |
40 | Left rear cover | 443088003040 |
41 | Right rear cover | 443088003041 |
42 | Cord clip | 443088003042 |
43 | Brush holder | 443088003043 |
44 | Brush | 443088003044 |
45 | Brush spring | 443088003045 |
46 | Screw ST 4 x 18 | 443088003046 |
47 | Cord plug | 443088003047 |
48 | Cord armor | 443088003048 |
49 | Switch | 443088003049 |
52 | Capacitor | 443088003052 |
53 | Screw st4 x 22 | 443088003053 |
901 | Gear box with bush Further spareparts available | 443088003901 |
