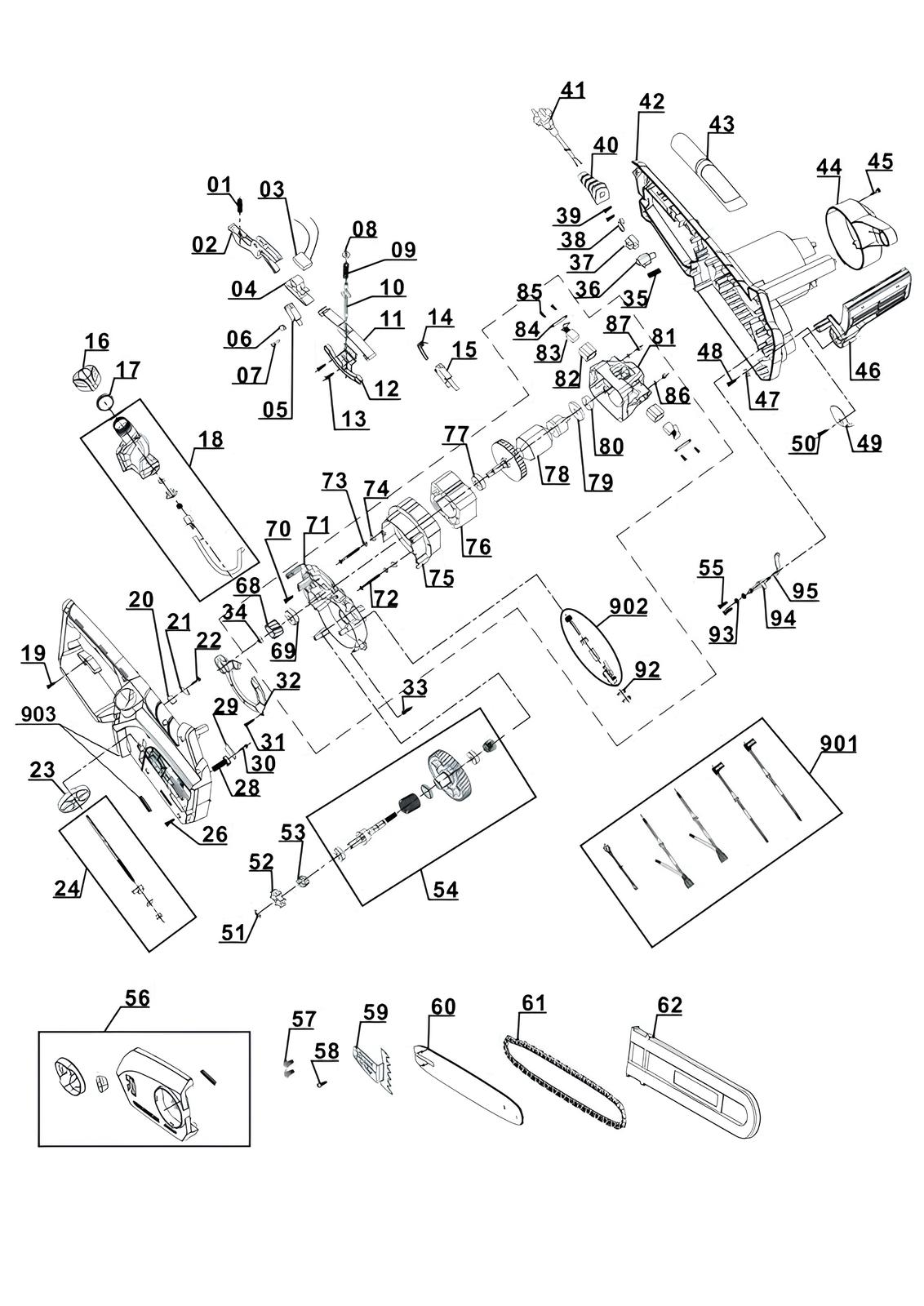

Запасные части и деталировка для пилы GH-EC 1835 4501710 (Ident number 21021)
Таблица запчастей для пилы GH-EC 1835 4501710 (Ident number 21021)
Позиция | Артикул | |
1 | Button spring | 450171001001 |
2 | Switch button | 450171001002 |
3 | Capacitance | 450171001003 |
4 | Middle lever | 450171001004 |
5 | Microswitch | 450171001005 |
6 | Clamp | 450171001006 |
7 | Flange screw 3x12 | 450171001007 |
8 | Washer | 450171001008 |
9 | Spring | 450171001009 |
10 | Brake bar | 450171001010 |
11 | Switch lever | 450171001011 |
12 | Brake bar dead plate | 450171001012 |
13 | Sink screw 4x14 | 450171001013 |
14 | Brake spring | 450171001014 |
15 | Control switch | 450171001015 |
16 | Oil box cap assy | 450171001016 |
17 | Seal ring | 450171001017 |
18 | Tank assy' | 450171001018 |
19 | Self tapping screw 4x12 | 450171001019 |
20 | Sponge washer | 450171001020 |
21 | Clamp | 450171001021 |
22 | Flange screw 3x12 | 450171001022 |
23 | Adjusting knob | 450171001023 |
24 | Adjust screw rod assy' | 450171001024 |
26 | Self tapping screw 5x18 | 450171001026 |
28 | Machine screw | 450171001028 |
29 | Clamp | 450171001029 |
30 | Self tapping screw 4x12 | 450171001030 |
31 | Self tapping screw 4x12 | 450171001031 |
32 | Dust cover | 450171001032 |
33 | Self-tapping screw 5x16 | 450171001033 |
34 | Hex nut | 450171001034 |
35 | Lock-off spring | 450171001035 |
36 | Lock-off button | 450171001036 |
37 | Terminal strip | 450171001037 |
38 | Cable clamp | 450171001038 |
39 | Self tapping screw 4x12 | 450171001039 |
40 | Cable sleeve | 450171001040 |
41 | Power line | 450171001041 |
42 | Left housing | 450171001042 |
43 | Cover | 450171001043 |
44 | Motor rear cover | 450171001044 |
45 | Self tapping screw 5x18 | 450171001045 |
46 | Preventer plate | 450171001046 |
47 | Washer | 450171001047 |
48 | Self-tapping screw 5x16 | 450171001048 |
49 | Lever clamp | 450171001049 |
50 | Self-tapping screw 5x16 | 450171001050 |
51 | E-check ring | 450171001051 |
52 | Sprocket | 450171001052 |
53 | Tensioning spring | 450171001053 |
54 | Output shaft assy' | 450171001054 |
55 | Self tapping screw 4x18 | 450171001055 |
56 | Adjust end assy' | 450171001056 |
57 | Sink screw 4x12 | 450171001057 |
58 | Self tapping screw 4x12 | 450171001058 |
59 | spiked bumper | 450171001059 |
60 | Guide bar | 450172002060 |
61 | Chain saw | 450172002061 |
62 | Blade cover | 450172001062 |
68 | Motor gear | 450171001068 |
69 | Motor gear bush | 450171001069 |
70 | Self-tapping screw 5x16 | 450171001070 |
71 | Facing bar | 450171001071 |
72 | Stator screw | 450171001072 |
73 | Spring washer | 450171001073 |
74 | Flat gasket | 450171001074 |
75 | Wind screen | 450171001075 |
76 | Stator assy. | 450172001076 |
77 | Beasring | 450171001077 |
78 | Rotor assy. | 450172001078 |
79 | Commutator ring | 450171001079 |
80 | Bearing | 450171001080 |
81 | Motor back support | 450171001081 |
82 | Brush holder | 450171001082 |
83 | Brush (pair) | 450171001083 |
84 | Brush holder clamp | 450171001084 |
85 | Self-tapping screw 3x8 | 450171001085 |
86 | Gasket | 450171001086 |
87 | Hex nut | 450171001087 |
92 | Flange screw 3x12 | 450171001092 |
93 | Rubber ring | 450171001093 |
94 | Glib | 450171001094 |
95 | Transparent oil tube | 450171001095 |
800 | chain 16" (40cm) (Kangxin) | 450172401800 |
901 | Connecting wire | 450171001901 |
902 | oil pump assy. Further spareparts available | 450171001902 |
903 | Right housing with seal Further spareparts available | 450171001903 |
