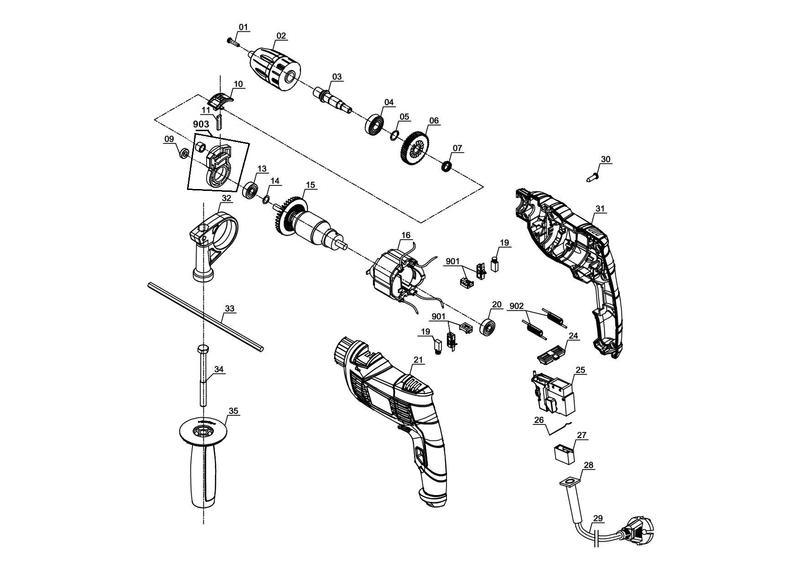

Запасные части и деталировка для дрели TC-ID 550 E 4258621 (Ident number 11016)
Таблица запчастей TC-ID 550 E 4258621 (Ident number 11016)
Позиция | Артикул | |
1 | spin screw M6x25 | 425862101001 |
2 | drill chuck | 425862101002 |
3 | output shaft | 425862101003 |
4 | ball bearing 6001-2Z | 425862101004 |
5 | retaining ringF12 | 425862101005 |
6 | GEAR | 425862101006 |
7 | spring 1*12.4*3 | 425862101007 |
9 | sealing ring | 425862101009 |
10 | impact button | 425862101010 |
11 | change plate 6×22×2.5 | 425862101011 |
13 | ball bearing 608-2RS | 425862101013 |
14 | washer8*13*2 | 425862101014 |
15 | rotor | 425862101015 |
16 | stator | 425862101016 |
19 | brush (pair) | 425862101019 |
20 | ball bearing 627-2Z | 425862101020 |
21 | left housing | 425862101021 |
24 | CHANGE BUTTON | 425862101024 |
25 | power switch | 425862101025 |
26 | Contact wire | 425862101026 |
27 | capacitor | 425862101027 |
28 | cable sheath | 425862101028 |
29 | cable | 425862101029 |
30 | screw 4.2*16 | 425862101030 |
31 | right housing | 425862101031 |
32 | HANDLE SUPPORT | 425862101032 |
33 | staff guage | 425862101033 |
34 | bolt M8×90 | 425862101034 |
35 | handle | 425862101035 |
901 | brush holder(pair) Further spareparts available | 425862101901 |
902 | inductance | 425862101902 |
903 | bracket complete Further spareparts available | 425862101903 |
