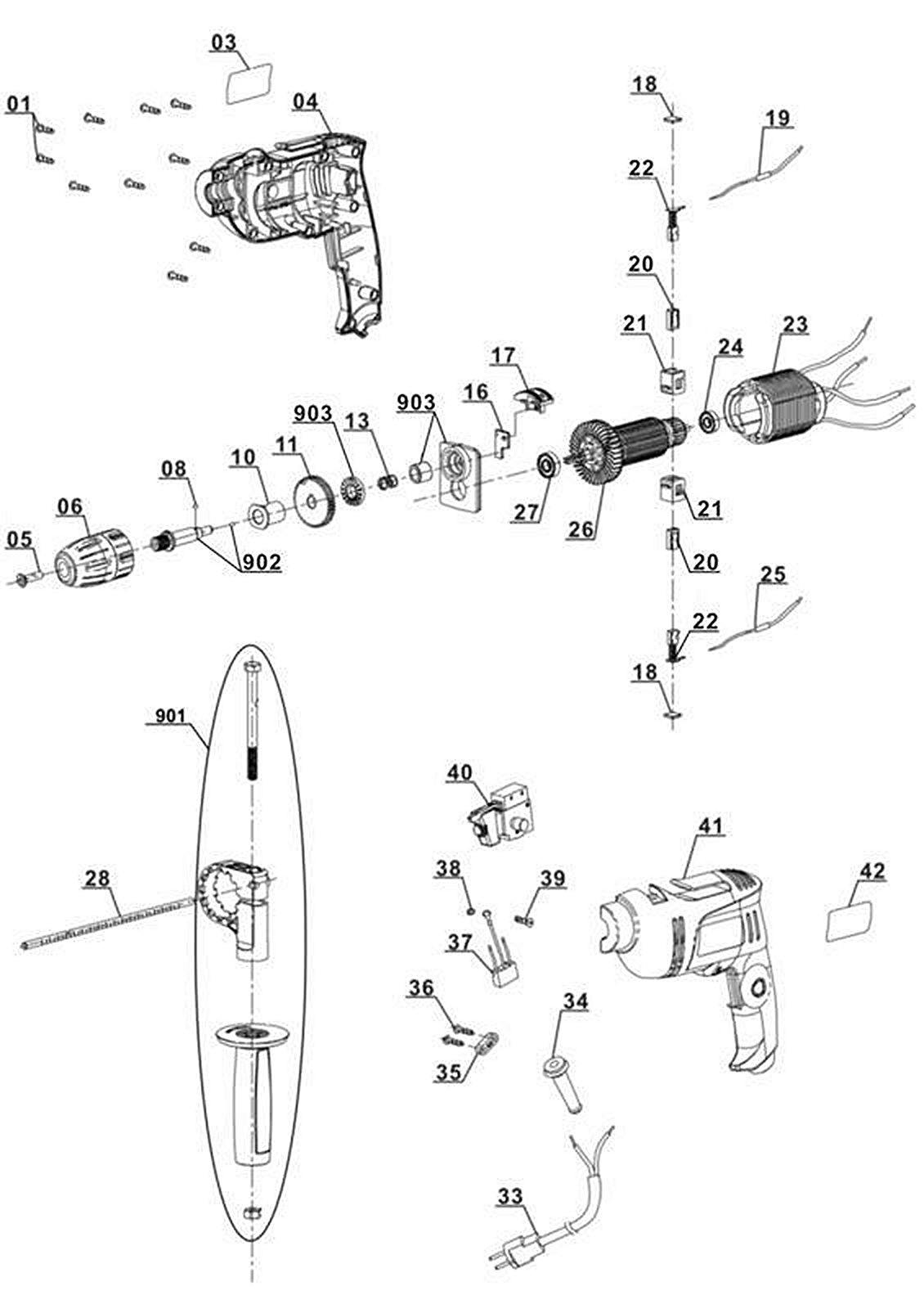

Запасные части и деталировка для дрели TC-ID 650 E 4258682 (Ident number 11014)

Показано с 1 по 5 из 5 (всего 1 страниц)

Таблица запчастей для дрели TC-ID 650 E 4258682 (Ident number 11014)

Позиция Артикул
1 screw 4,2 x 16 425865804001
3 type label 425865804003
4 housing right (Einhell Red) 425868201004
5 chuck screw 425865804005
6 drill chuck 425865804006
8 steel ball 4 425865804008
10 Bush 425865804010
11 gear 425865804011
13 Spring 425865804013
16 Slider board 425865804016
17 selector (Black) 425868201017
18 brush cap 425865804018
19 line 425865804019
20 cupreous sheath 425865804020
21 Brush Holder 425865804021
22 carbon brush (pair) 425865804022
23 stator 425865804023
24 ball bearing 425865804024
25 connection wire 425865804025
26 rotor 425865804026
27 ball bearing 425865804027
28 depth ruler (silver) 425865804028
33 power cable with plug 425865804033
34 cable sleeve 425865804034
35 cable plate 425865804035
36 self-tapping screw ST4.2x16 425865804036
37 capacitance 425865804037
38 washer 425865804038
39 self-tapping screw ST4.2x13 425865804039
40 switch (Black) 425868201040
41 housing left (Einhell Red) 425868201041
42 type label 425865804042
901 assistant handle Further spareparts available 425865804901
902 spindle cpl. Further spareparts available 425865804902
903 Alu seat assy. Further spareparts available 425865804903
