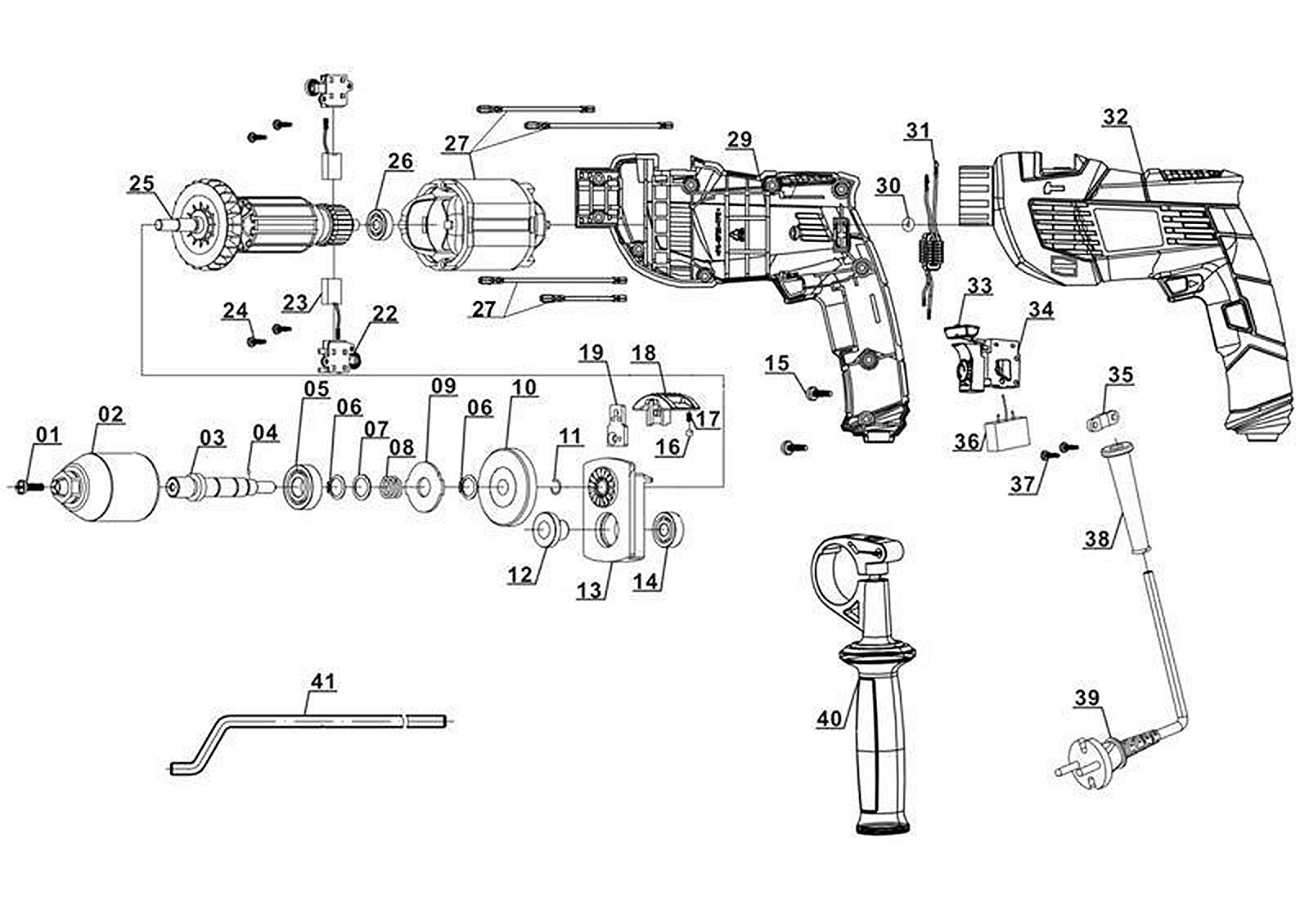

Запасные части и деталировка для дрели TC-ID 720 E 4259819 (Ident number 11025)

Показано с 1 по 3 из 3 (всего 1 страниц)

Таблица запчастей для дрели TC-ID 720 E 4259819 (Ident number 11025)

Позиция Артикул
1 screw M6x30(left) 425976601001
2 chuck 425976601002
3 output shaft 425976601003
4 woodruff key 3x10 425976601004
5 bearing 6001/C3-ZRS 425976601005
6 circlip 12 425976601006
7 washer? 425976601007
8 spring 425976601008
9 washer? 425976601009
10 gear 425976601010
11 circlip 10 425976601011
12 oil shield 425976601012
13 inner support 425976601013
14 bearing 608/C3-2Z 425976601014
15 self-tapping screw ST4.2x16 425976601015
16 steel ball 4 425976601016
17 spring 425976601017
18 drill/impact selector (black) 425976901018
19 slip plate 425976601019
22 brush holder assy. 425976601022
23 carbon brush(pair) 425976601023
24 self-tapping screw ST2.9x12 425976601024
26 bearing 607/C3-2Z 425976601026
29 right housing (Einhell Red) 425976901029
30 O-ring 425976601030
31 inductance 425976601031
32 left housing (Einhell Red) 425976901032
33 dial (Black) 425976901033
34 switch (Black) 425976901034
35 cord clamp 425976601035
36 capacitor 425976601036
37 self-tapping screw ST4.2x13 425976601037
38 cord sleeve 425976601038
39 power cord 425976601039
40 side handle assy. 425976601040
41 depth stop 425976601041
901 rotor with stator Further spareparts available 425976601901
