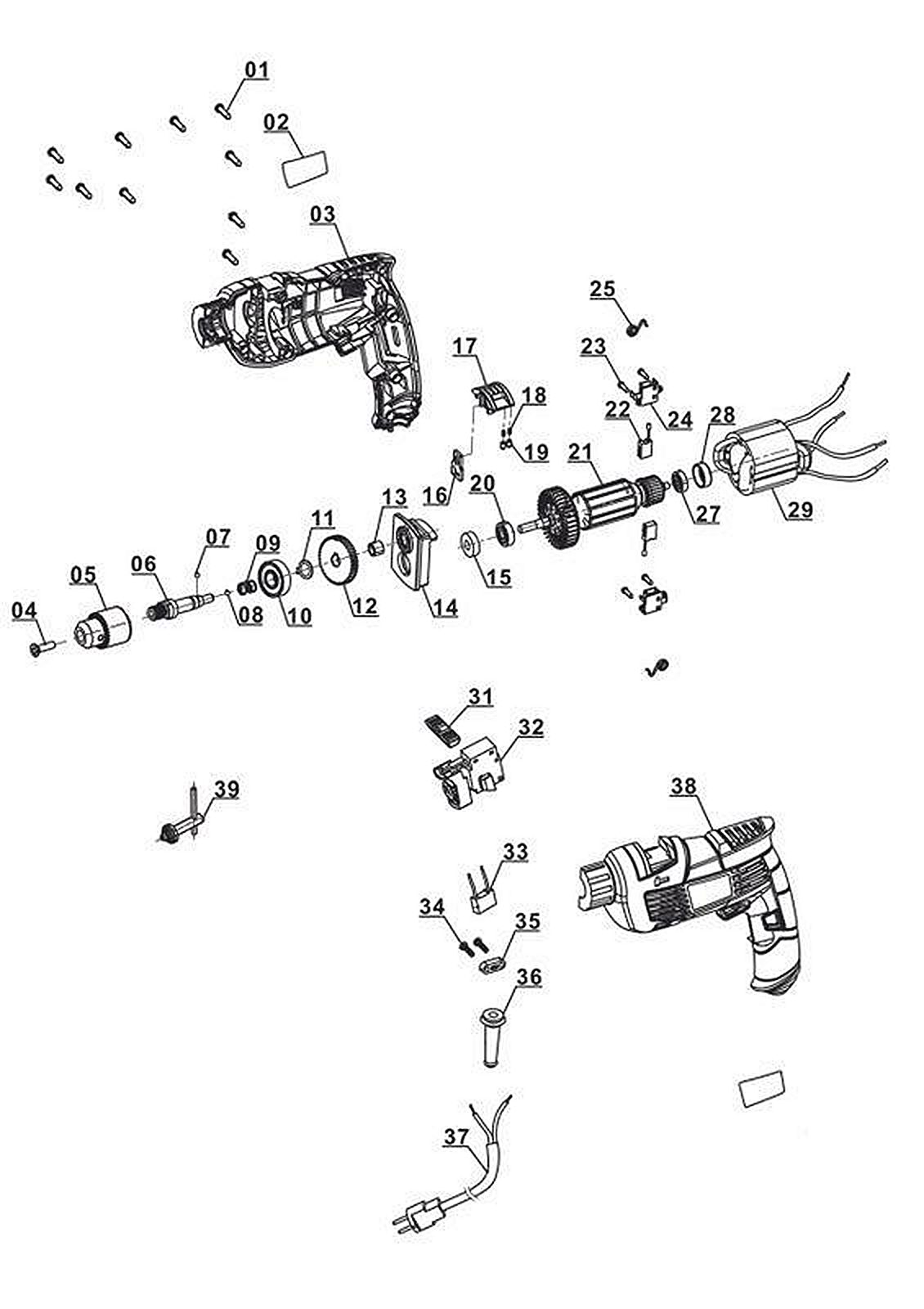

Запасные части и деталировка для дрели TC-ID 1000 E 4259825 (Ident number 11035)
Показано с 1 по 4 из 4 (всего 1 страниц)
Таблица запчастей для дрели TC-ID 1000 E 4259825 (Ident number 11035)
| Позиция | Артикул | |
| 1 | self-tapping screw 4.2×16-F | 425982501001 |
| 2 | AH1010 nameplate | 425982501002 |
| 3 | AH1010 right housing | 425982501003 |
| 4 | screw M6×25 | 425982501004 |
| 5 | chuck1.5-13mm | 425982501005 |
| 7 | steel ball 4 | 425982501007 |
| 9 | AH1010 returnning spring | 425982501009 |
| 10 | bearing 6002-2RS | 425982501010 |
| 11 | circlip for shaft15 | 425982501011 |
| 12 | AH1010 gear | 425982501012 |
| 15 | washer F8×F17×3.5 | 425982501015 |
| 16 | AH1010 shift plate | 425982501016 |
| 17 | AH1010 push plate | 425982501017 |
| 18 | AH1010 spring | 425982501018 |
| 19 | AH1010 push plate spring sleev | 425982501019 |
| 20 | bearing 608-2Z | 425982501020 |
| 21 | AH1010 rotor | 425982501021 |
| 22 | 5.5×11×16 carbon brush (pair) | 425982501022 |
| 23 | self-tapping screw 2.9×10-C | 425982501023 |
| 24 | 5.5×11×16 brush holder assy. | 425982501024 |
| 25 | spring | 425982501025 |
| 26 | inductance | 425982501026 |
| 27 | bearing 626-2Z | 425982501027 |
| 28 | bearing sheath 626 | 425982501028 |
| 29 | AH1010 stator assy. | 425982501029 |
| 31 | AH1010 switch push plate | 425982501031 |
| 32 | AH1010 switch | 425982501032 |
| 33 | capacitor 0.33-F | 425982501033 |
| 34 | self-tapping screw ST4.2×16 | 425982501034 |
| 35 | AH650 cord clamp | 425982501035 |
| 36 | AH1010 cord sleeve | 425982501036 |
| 37 | AH1010 power cord with plug | 425982501037 |
| 38 | AH1010 left housing | 425982501038 |
| 39 | drill chuck key | 425982501039 |
| 800 | depth stop | 425982501800 |
| 801 | aditional handle | 425982501801 |
| 901 | spindle assy(6+8) Further spareparts available | 425982501901 |
| 902 | Alu seat(13+14) | 425982501902 |
