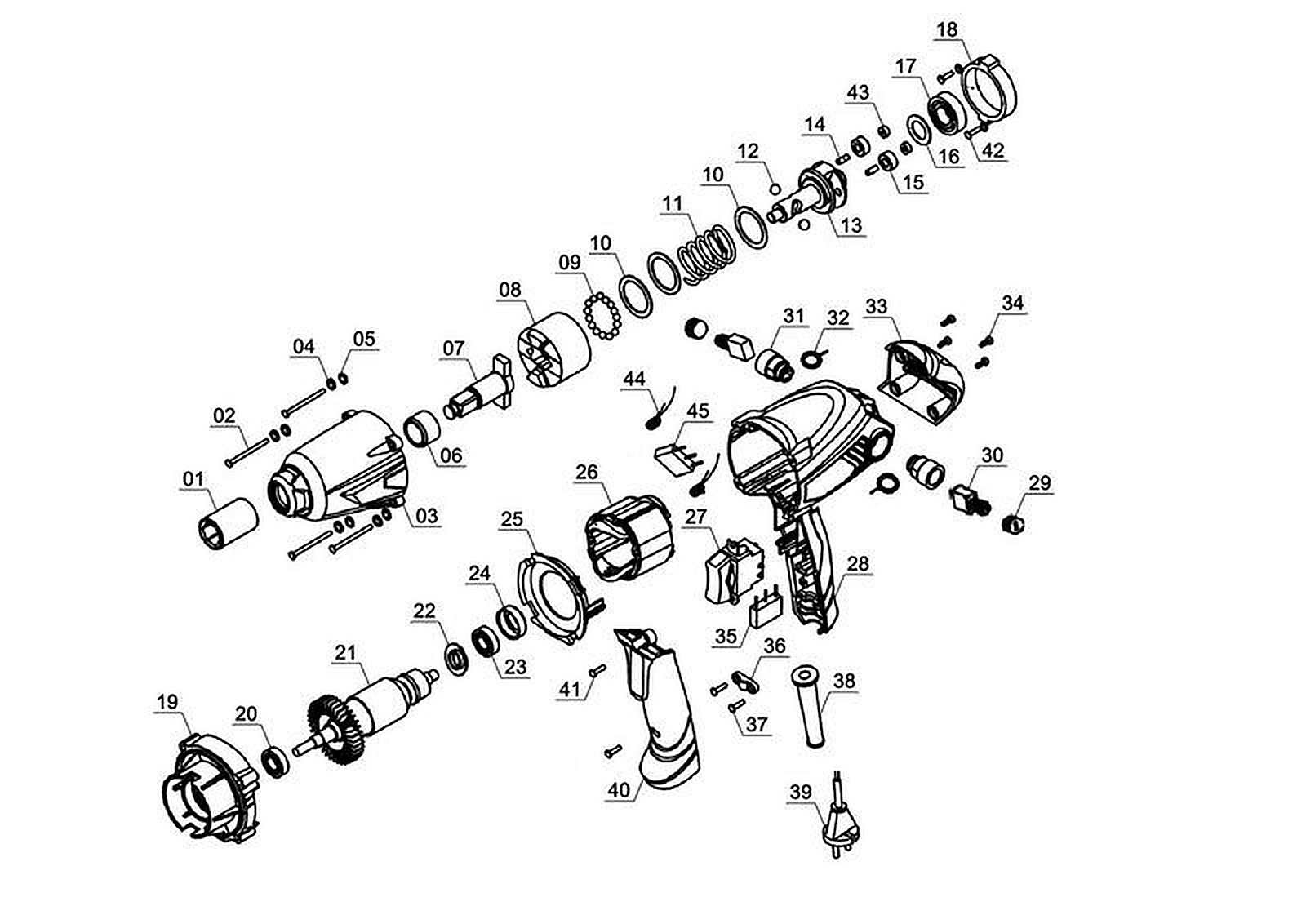

Запасные части и деталировка для гайковерта CC-IW 450 20483040 (Ident number 11027)
Таблица запчастей для гайковерта CC-IW 450 20483040 (Ident number 11027)
Позиция | Артикул | |
1 | sockets (4pcs) | 204830401001 |
2 | screw ST3.9X40 | 204830401002 |
3 | gear box | 204830402003 |
4 | flat washerF4 | 204830401004 |
5 | spring washerF4 | 204830401005 |
6 | steel jacket | 204830401006 |
7 | T shaft | 204830401007 |
8 | Impact block | 204830401008 |
9 | steel ballSF4 | 204830401009 |
10 | flat washerF26.5*F34.5*1 | 204830401010 |
11 | large spring | 204830401011 |
12 | steel ballSF5 | 204830401012 |
13 | Impact shaft | 204830401013 |
14 | Pin F6X15 | 204830401014 |
15 | planet gear | 204830401015 |
16 | flat washer F15*F24.5*1 | 204830401016 |
17 | bearing 6000-2RS | 204830401017 |
18 | planet ring gear | 204830401018 |
19 | center cover | 204830401019 |
20 | bearing 6000-2RS | 204830401020 |
21 | Rotor assembly | 204830401021 |
22 | Insulation washer | 204830401022 |
23 | bearing 608-2RS | 204830401023 |
24 | bearing leather collar | 204830401024 |
25 | wind circule | 204830401025 |
26 | stator assembly | 204830401026 |
27 | switch | 204830401027 |
28 | housing | 204830401028 |
29 | brush holder cover | 204830401029 |
30 | carbon brush assembly (pair) | 204830401030 |
31 | brush holder assembly | 204830401031 |
32 | tension spring | 204830401032 |
33 | tail-hood | 204830401033 |
34 | screw ST3.9*16-F | 204830401034 |
35 | capacitance | 204830401035 |
36 | cord clamp | 204830401036 |
37 | screw ST3.9*14 | 204830401037 |
38 | jacket | 204830401038 |
39 | cable | 204830401039 |
40 | handle cover | 204830401040 |
41 | screw ST3.9*16-F | 204830401041 |
42 | Hexagon socket head cap screw | 204830401042 |
43 | steel jacket | 204830401043 |
44 | inductance | 204830401044 |
45 | capacitance | 204830401045 |
46 | screw ST3.5*50 | 204830401046 |
47 | inductance coil | 204830401047 |
48 | spring washer | 204830401048 |
