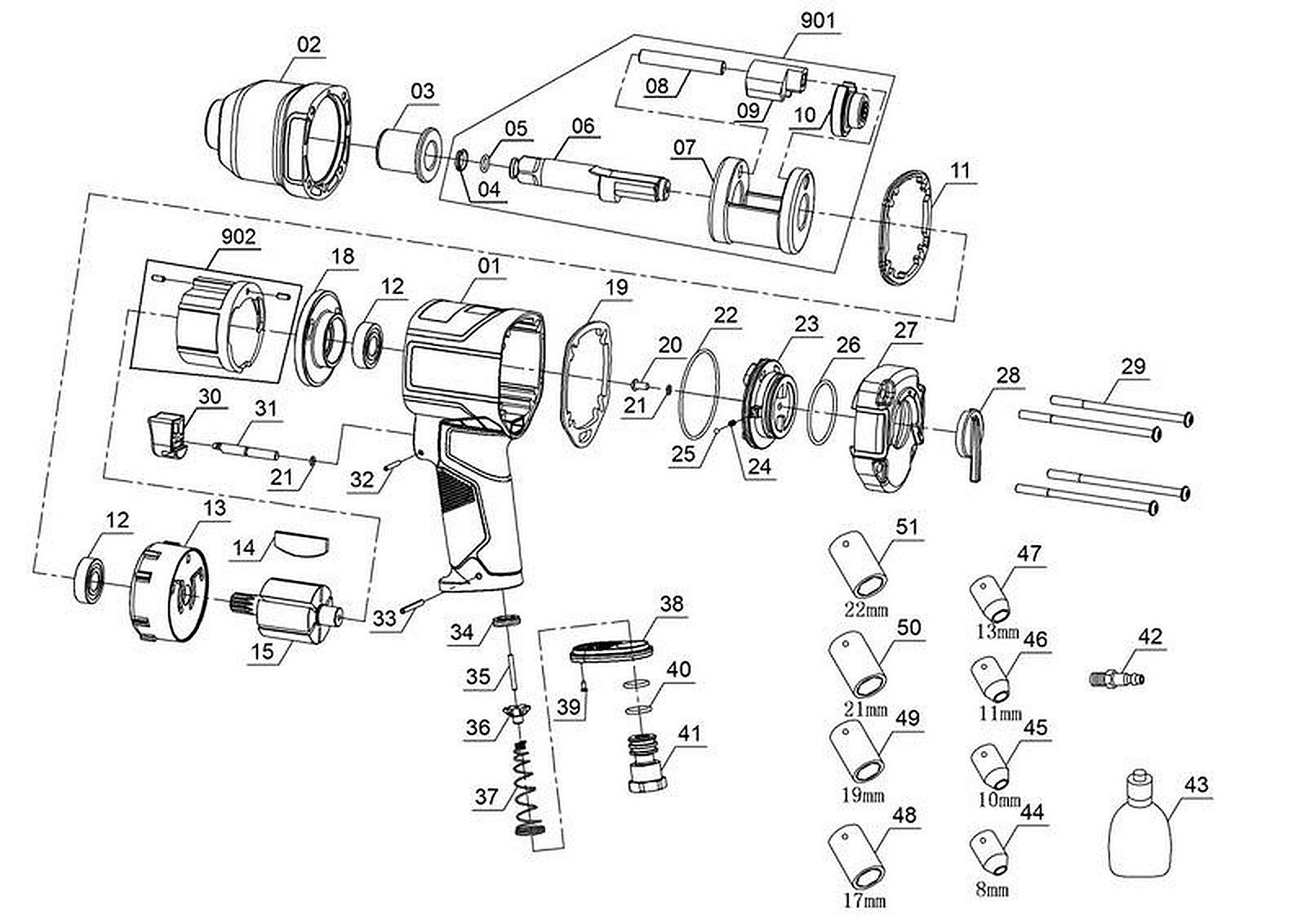

Запасные части и деталировка для гайковерта TC-PW 340 4138950 (Ident number 21022)
Таблица запчастей для гайковерта TC-PW 340 4138950 (Ident number 21022)
Позиция | Артикул | |
1 | tool body | 413895001001 |
2 | front cover | 413895001002 |
3 | lubricating bearing sleeve | 413895001003 |
11 | front sealing gasket | 413895001011 |
12 | bearing 6001-2Z | 413895001012 |
13 | front cylinder cover | 413895001013 |
14 | 6pcs blades set | 413895001014 |
15 | rotor | 413895001015 |
18 | rear cylinder cover | 413895001018 |
19 | rear sealing gasket | 413895001019 |
20 | self-tapping screw | 413895001020 |
21 | O ring 3*1 | 413895001021 |
22 | O ring 50*1.8 | 413895001022 |
23 | regulator | 413895001023 |
24 | regulator spring | 413895001024 |
25 | steel ball | 413895001025 |
26 | O ring 32.5*2 | 413895001026 |
27 | rear cover | 413895001027 |
28 | regulator handle | 413895001028 |
29 | hex screw | 413895001029 |
30 | trigger | 413895001030 |
31 | valve pin | 413895001031 |
32 | elastic dowel pin 2.5*20 | 413895001032 |
33 | elastic dowel pin 3*30 | 413895001033 |
34 | valve washer | 413895001034 |
35 | valve shaft | 413895001035 |
36 | air valve | 413895001036 |
37 | valve spring | 413895001037 |
38 | muffler cover | 413895001038 |
39 | self-tapping screw | 413895001039 |
40 | O ring 12*2 | 413895001040 |
41 | inlet connector | 413895001041 |
42 | R1/4" male Europe type steel n | 413895001042 |
43 | empty oil pot | 413895001043 |
44 | 8mm CRV socket | 413895001044 |
45 | 10mm CRV socket | 413895001045 |
46 | 11mm CRV socket | 413895001046 |
47 | 13mm CRV socket | 413895001047 |
48 | 17mm CRV socket | 413895001048 |
49 | 19mm CRV socket | 413895001049 |
50 | 21mm CRV socket | 413895001050 |
51 | 22mm CRV socket | 413895001051 |
901 | hammering system assembly Further spareparts available | 413895001901 |
902 | cylinder Further spareparts available | 413895001902 |
