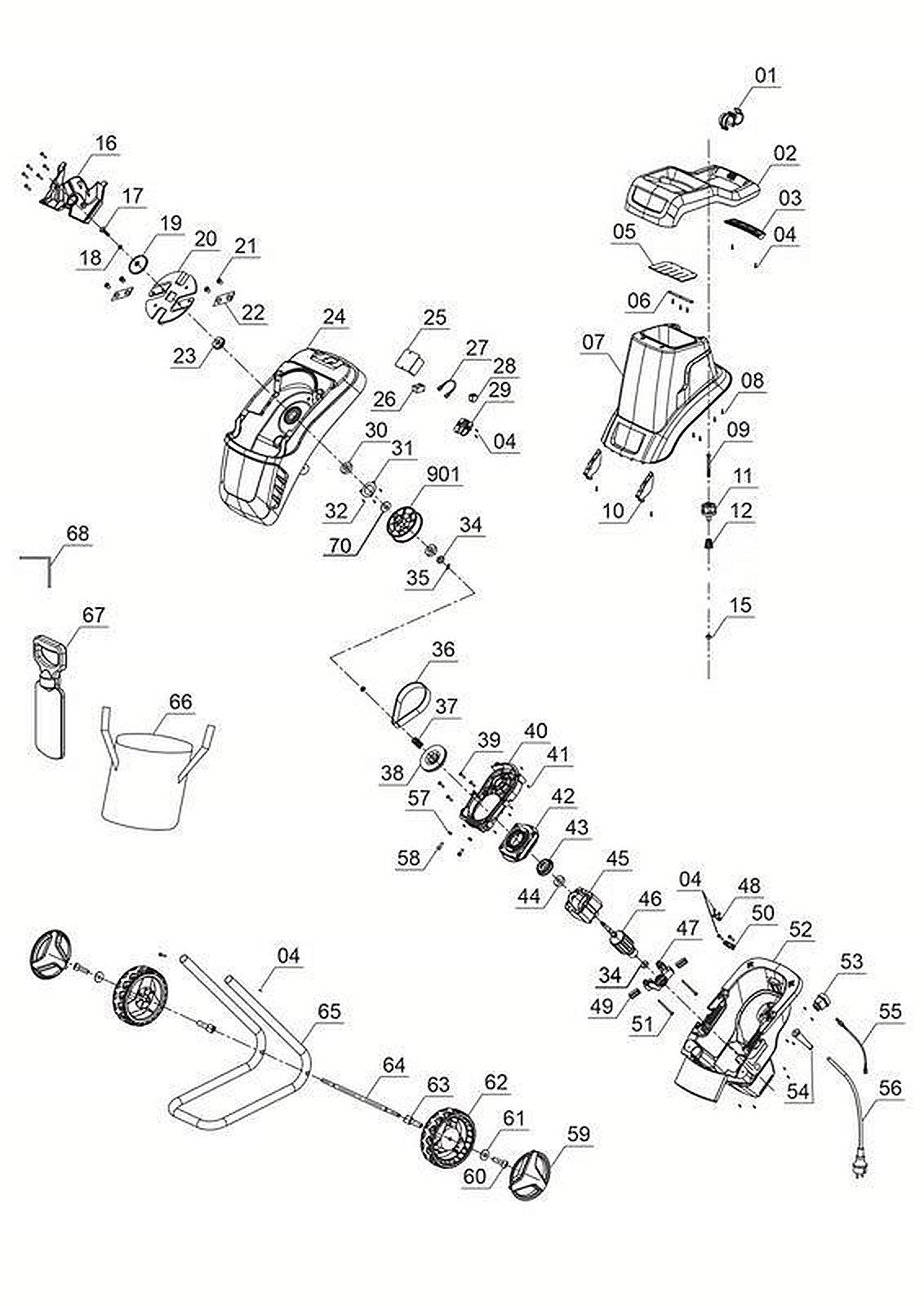

Запасные части и деталировка для измельчителя 3430330 (Ident number 11018)

Показано с 1 по 5 из 5 (всего 1 страниц)

Таблица запчастей для измельчителя 3430330 (Ident number 11018)

Позиция Артикул
1 hook 343033001001
2 Feeder hopper 343033001002
3 handle cover 343033001003
4 screw ST 3.9x16 343033001004
5 baffle 343033001005
6 Press bar 343033001006
7 Upper housing 343033001007
8 screw ST4.2x20 343033001008
9 screw 343033001009
10 fixed hook 343033001010
11 Knob 343033001011
12 sping knob selector 343033001012
15 locknut M8 343033001015
16 Blade defend block 343033001016
17 bolt M8x25 343033001017
18 spring washer 343033001018
19 block 343033001019
20 Blade Plate 343033001020
21 bolt M10x12 343033001021
22 Blade 343033001022
23 Drive block 343033001023
24 Bottom Housing 343033001024
25 PC board 343033001025
26 switch II 343033001026
27 Connecting wire 343033001027
28 Fixed nut 343033001028
29 Switch Fixer 343033001029
30 Bearing 6003RS 343033001030
31 Pedestal 343033001031
32 screw ST3.9x10 343033001032
34 Bearing 343033001034
35 circlip 343033001035
36 Belt 343033001036
37 small belt wheel 343033001037
38 fan 343033001038
39 screw ST4.8x16 343033001039
40 belt case 343033001040
41 screw ST4.8x35 343033001041
42 Motor front bracket 343033001042
43 bearing sleeve 343033001043
44 Bearing 6201RS 343033001044
45 stator 343033001045
46 rotor 343033001046
47 Motor back support 343033001047
48 cable clamp 343033001048
49 carbon brush (Pair) 343033001049
50 press board 343033001050
51 screw ST4x75 343033001051
52 Motor Cover 343033001052
53 Switch 343033001053
54 cable sheath 343033001054
55 Connecting wire 343033001055
56 power cord 343033001056
57 locknut M6 343033001057
58 bolt M6x16 343033001058
59 Wheel cover 343033001059
60 bolt M6x9 343033001060
61 washer 343033001061
62 wheel 343033001062
63 Bush 343033001063
64 Wheel shaft 343033001064
65 ELBOW 343033001065
66 dust bag 343033001066
67 Push stick 343033001067
68 hexagon key 343033001068
70 washer 343033001070
901 Big belt wheel with output sha Further spareparts available 343033001901
