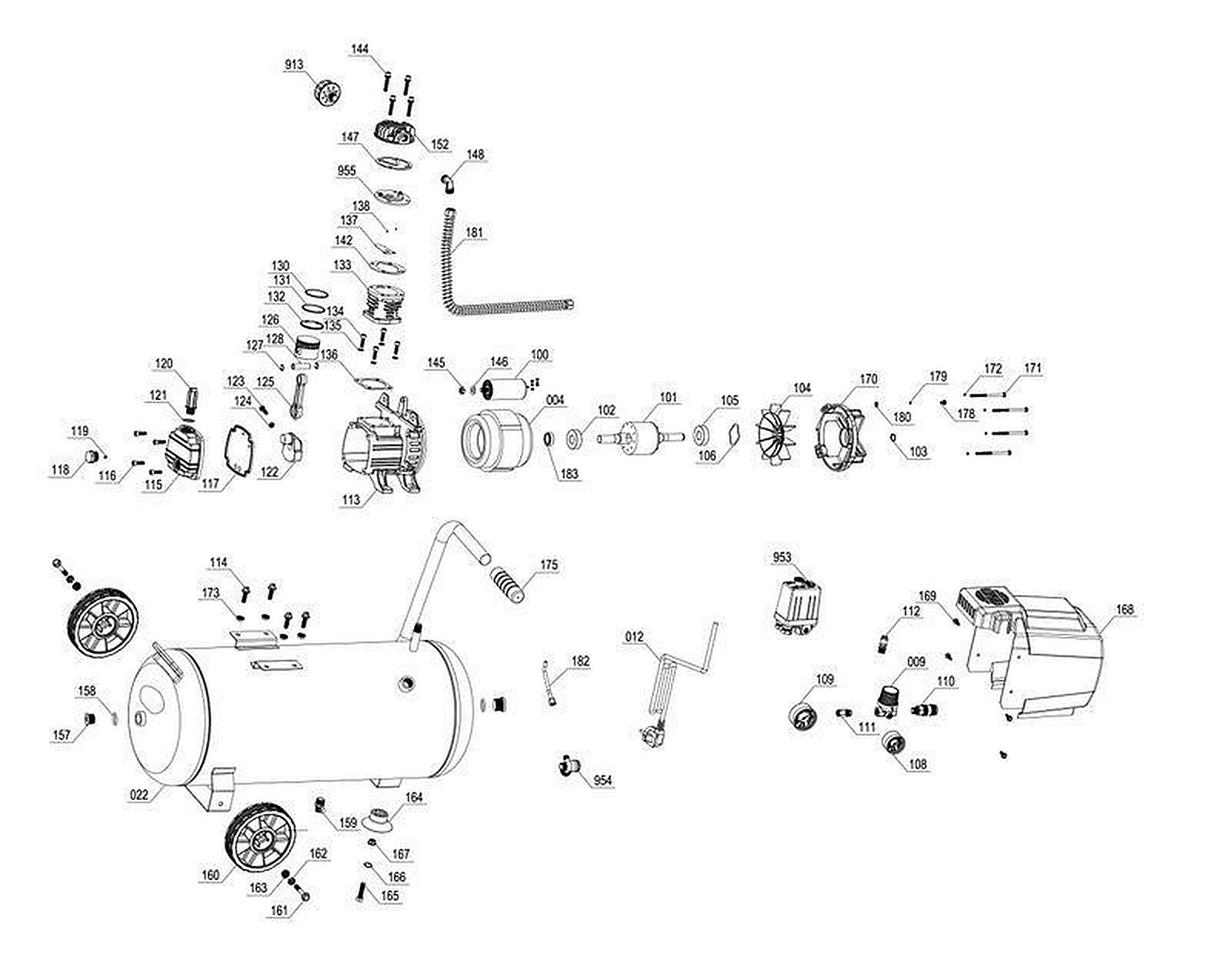

Запасные части и деталировка для компрессора TC-AC 190/50/8 4007332 (Ident number 21010)
Таблица запчастей для компрессора TC-AC 190/50/8 4007332 (Ident number 21010)
Позиция | Артикул | |
4 | stator | 400733201004 |
9 | pressure regulator | 400733201009 |
12 | power cable 230 V 2m | 400733201012 |
22 | pressure tank | 400733201022 |
100 | start-up / operate capacitor | 400733201100 |
101 | short circuit rotor | 400733201101 |
102 | ball bearing 6203 RZ | 400733201102 |
103 | retaining ring | 400733201103 |
104 | engine fan 1 | 400733201104 |
105 | fan bearing | 400733201105 |
106 | spring lock washer | 400733201106 |
108 | pressure gauge set pressure | 400733201108 |
109 | pressure gauge vessel pressure | 400733201109 |
110 | quick coupler | 400733201110 |
111 | double nipple | 400733201111 |
112 | safety valve | 400733201112 |
113 | crankshaft body | 400733201113 |
114 | screw M8 x 25 | 400733201114 |
115 | crankshaft body cover | 400733201115 |
116 | screw M5 x 18 | 400733201116 |
117 | seal | 400733201117 |
118 | oil inspection glass | 400733201118 |
119 | sealing ring | 400733201119 |
122 | crankshaft | 400733201122 |
123 | screw M6 x 20 | 400733201123 |
124 | nut M6 | 400733201124 |
125 | connecting rod | 400733201125 |
126 | piston | 400733201126 |
127 | retaining ring | 400733201127 |
128 | bolt | 400733201128 |
130 | 1st piston ring | 400733201130 |
131 | 2nd piston ring | 400733201131 |
132 | oil scraper ring | 400733201132 |
133 | cylinder | 400733201133 |
134 | screw M6 x 26 | 400733201134 |
135 | spring washer | 400733201135 |
136 | cylinder gasket | 400733201136 |
137 | inlet valve | 400733201137 |
138 | pin | 400733201138 |
142 | valve plate gasket | 400733201142 |
144 | screw A M5*40 | 400733201144 |
145 | nut M8 | 400733201145 |
146 | standard washer | 400733201146 |
147 | cylinder head gasket | 400733201147 |
148 | right-angle connector A | 400733201148 |
152 | cylinder head - 1 | 400733201152 |
157 | thread plug | 400733201157 |
158 | o-ring | 400733201158 |
159 | drainage valve | 400733201159 |
160 | wheels | 400733201160 |
161 | screw M8 x 45 | 400733201161 |
162 | nut M8 | 400733201162 |
163 | pawl nut M13 | 400733201163 |
164 | rubber foot | 400733201164 |
165 | screw M8 x 35 | 400733201165 |
166 | standard washer | 400733201166 |
167 | pawl nut M8 | 400733201167 |
168 | motor housing | 400733201168 |
169 | screw M5 x 14 | 400733201169 |
170 | fore-bearing seat | 400733201170 |
171 | screw | 400733201171 |
172 | spring washer | 400733201172 |
173 | nut | 400733201173 |
175 | rubber handle | 400733201175 |
178 | screw | 400733201178 |
179 | spring washer | 400733201179 |
180 | toothed lock washer | 400733201180 |
181 | pressure line A | 400733201181 |
182 | release pipe - A | 400733201182 |
183 | seal | 400733201183 |
901 | vent plug with o-ring Further spareparts available | 400733201901 |
913 | Air Filter Assembly | 400733201913 |
953 | Pressure Switch Assembly | 400733201953 |
954 | Non-return valve assembly | 400733201954 |
955 | Exhaust valve plate assembly | 400733201955 |
