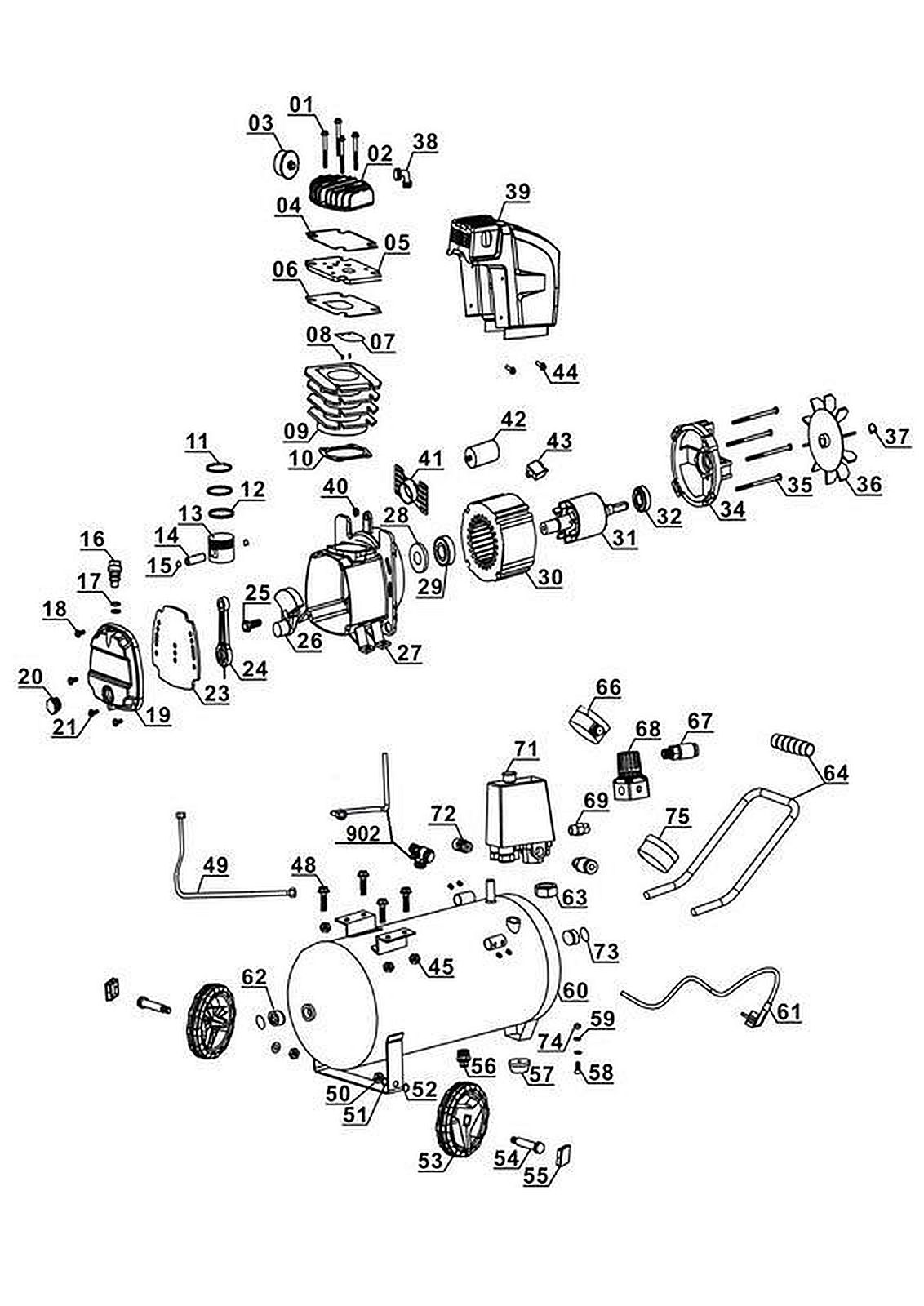

Запасные части и деталировка для компрессора TE-AC 270/50/10 4010440 (Ident number 11013)

Показано с 1 по 4 из 4 (всего 1 страниц)

Таблица запчастей для компрессора TE-AC 270/50/10 4010440 (Ident number 11013)

Позиция Артикул
1 Bolt M6x40 401044001001
2 cylinder head 401044001002
3 Air filter 401044001003
4 cylinder seals 401044001004
5 valve plate 401044001005
6 valve plate gasket F55 401044001006
7 valve clack 401044001007
8 pinf3x6 401044001008
9 cylinderf48 401044001009
10 cylinder gasket 401044001010
11 Gas Ring f48*2 401044001011
12 Oil Ring f48*3 401044001012
13 piston f48 401044001013
14 piston pin f12x39.5 401044001014
15 circlip f12 401044001015
16 breath pipe 401044001016
17 O circlip f18.3xf2.65 401044001017
18 bolt M6x16 401044001018
19 crank case cover 401044001019
20 oil leveler 401044001020
21 bolt M6x10 401044001021
23 rubber gasket 401044001023
24 conncting rod 401044001024
25 hex bolt M8x22(left) 401044001025
26 crank 20 401044001026
27 crank case 401044001027
28 sealing ring 401044001028
29 bearing 6204 401044001029
30 stator 401044001030
31 rotor 401044001031
32 bearing 6202 401044001032
34 motor cover 401044001034
35 bolt M5x105 401044001035
36 Wind leaf 401044001036
37 circlip f14 401044001037
38 connector 401044001038
39 fan cover 401044001039
40 nut M8 401044001040
41 flap 401044001041
42 capacitance 401044001042
43 thermal protector 401044001043
44 bolt M5x12 401044001044
45 nut M8 401044001045
46 One-way valve 401044001046
48 bolt M8x25 401044001048
49 discharge pipe f10 401044001049
50 nut M10 401044001050
51 spring f10 401044001051
52 washer f10 401044001052
53 wheel 401044001053
54 Wheel shaft 401044001054
55 Wheel cover 401044001055
56 drain plug 401044001056
57 washer foot 401044001057
58 screw 401044001058
59 washer f8 401044001059
60 tank 401044001060
61 power cord 401044001061
62 stem Rp1/2 401044001062
63 nut Rp1/4 401044001063
64 handle 401044001064
66 pressure gauge f50 401044001066
67 quick couplers 401044001067
68 regulator valve 401044001068
69 Through joint 401044001069
71 pressure switch with nut and 401044001071
72 safety valve 401044001072
73 O ring 401044001073
74 nut 401044001074
75 pressure gauge 401044001075
800 Inner hex screw 401044001800
801 hexagon key 401044001801
802 label for TE-AC 270/50/10 401044001802
902 One-way valve with release pip Further spareparts available 401044001902
