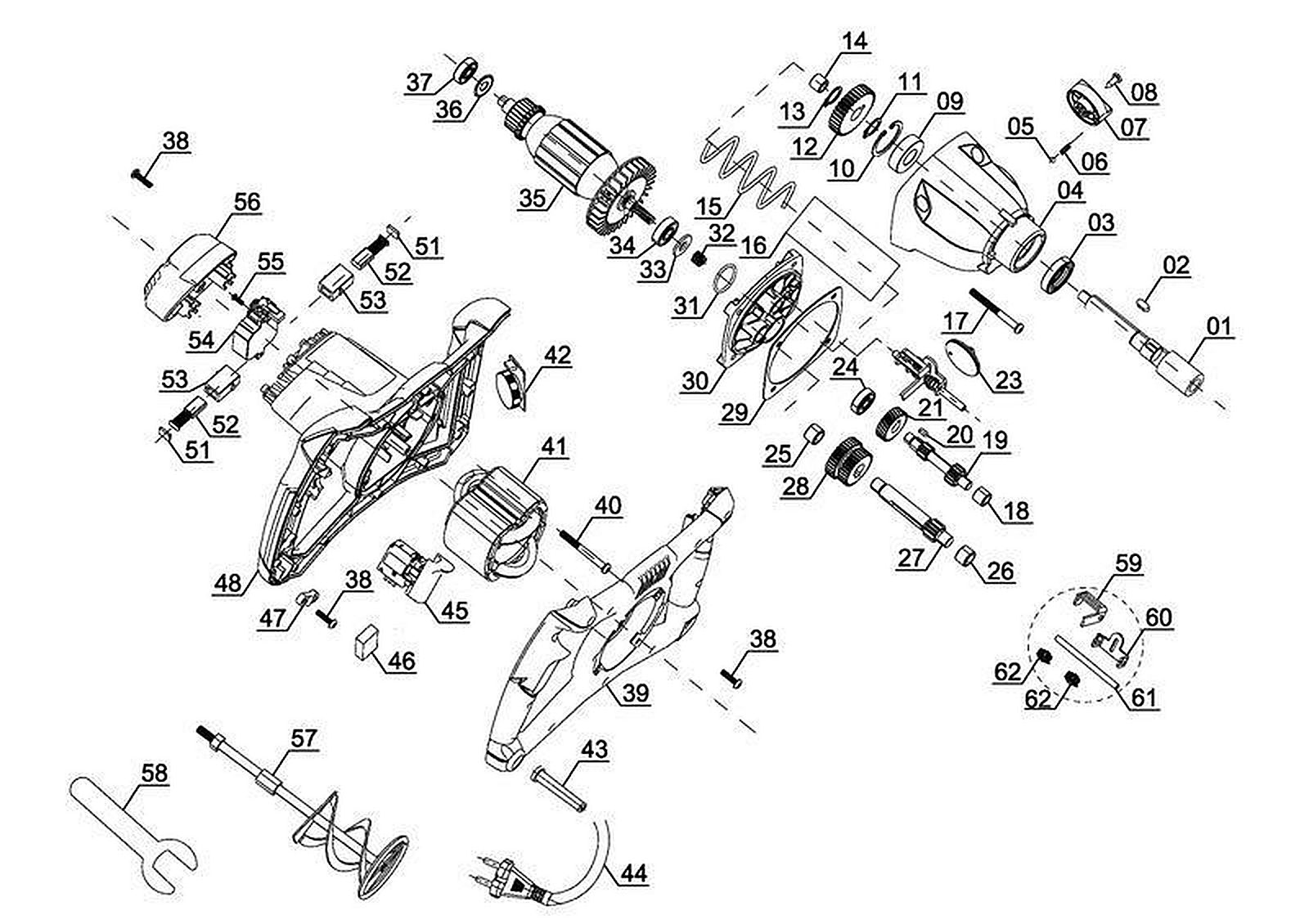

Запасные части и деталировка для миксера TC-MX 1400-2 E 4258550 (Ident number 21020)
Таблица запчастей для миксера TC-MX 1400-2 E 4258550 (Ident number 21020)
Позиция | Артикул | |
1 | output shaft | 425855001001 |
2 | flat key 5*10 | 425855001002 |
3 | oil seal | 425855001003 |
4 | head housing | 425855001004 |
5 | steel ball | 425855001005 |
6 | Spring | 425855001006 |
7 | Knob | 425855001007 |
8 | crossing tapping screw | 425855001008 |
9 | bearing 6002 | 425855001009 |
10 | elastic collar?32 | 425855001010 |
11 | elastic collar?15 | 425855001011 |
12 | big gear | 425855001012 |
13 | elastic collar?13 | 425855001013 |
14 | needle bearing HK0810 | 425855001014 |
15 | spring | 425855001015 |
16 | drivepipe | 425855001016 |
17 | crossing tapping screw ST5*55 | 425855001017 |
18 | needle bearing HK0810 | 425855001018 |
19 | main driving shaft | 425855001019 |
20 | flat key 3*8 | 425855001020 |
21 | diagonal gear | 425855001021 |
23 | shift driveplate | 425855001023 |
24 | bearing 608Z | 425855001024 |
25 | needle bearing HK1010 | 425855001025 |
26 | needle bearing HK1010 | 425855001026 |
27 | variable shaft | 425855001027 |
28 | two gang gear | 425855001028 |
29 | paper washer | 425855001029 |
30 | middle cover | 425855001030 |
31 | O-ring | 425855001031 |
32 | little spring | 425855001032 |
33 | woolen washer | 425855001033 |
34 | bearing 609RS | 425855001034 |
35 | motor | 425855001035 |
36 | dust cap | 425855001036 |
37 | bearing 608ZZ | 425855001037 |
38 | crossing tapping screw ST4×16 | 425855001038 |
39 | handle cover | 425855001039 |
40 | crossing tapping screw ST5×60 | 425855001040 |
41 | stator | 425855001041 |
42 | potentiometers bushing | 425855001042 |
43 | cable sleeve | 425855001043 |
44 | cable | 425855001044 |
45 | switch | 425855002045 |
46 | capacitance | 425855001046 |
47 | cable plate | 425855001047 |
48 | housing | 425855001048 |
51 | carbon cover | 425855001051 |
52 | carbon brush (pair) | 425855001052 |
53 | carbon hold | 425855001053 |
54 | variable speed control | 425855001054 |
55 | crossing tapping screw ST3×12 | 425855001055 |
56 | back cover | 425855001056 |
57 | paddle | 425855001057 |
58 | spanner | 425855001058 |
59 | shift fork B | 425855001059 |
60 | shift fork A | 425855001060 |
61 | shift guide rail | 425855001061 |
62 | shift fork sping | 425855001062 |
790 | Manual | 425855002790 |
791 | data label | 425855002791 |
792 | Safety instructions | 425855002792 |
