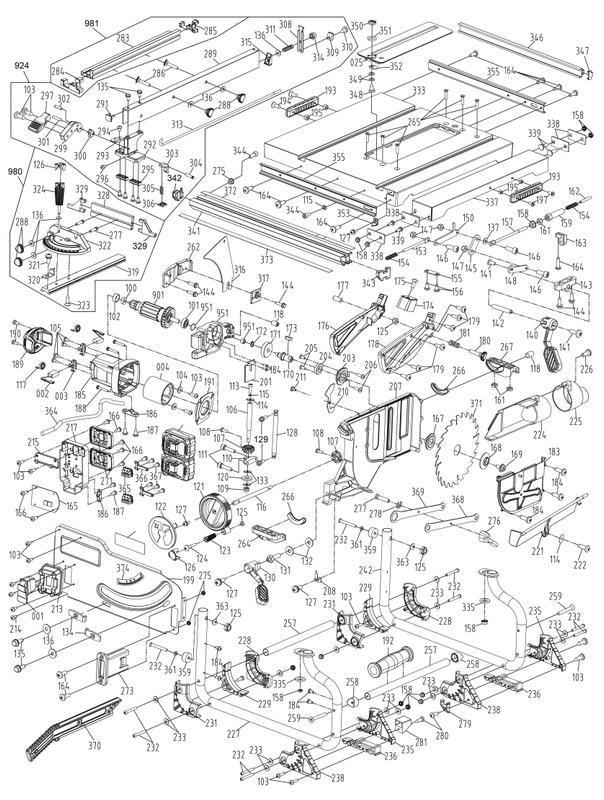

Запасные части и деталировка для пилы PXC TE-TS 36/210 Li-Solo 4340450 (Ident number 11019)
Таблица запчастей для пилы PXC TE-TS 36/210 Li-Solo 4340450 (Ident number 11019)
Позиция | Артикул | |
1 | switch on/off | 434045001001 |
2 | carbon brushes (pair) | 434045001002 |
3 | carbon brushes holder | 434045001003 |
4 | stator | 434045001004 |
25 | desk inlay | 434045001025 |
100 | commutator bearing 607RS | 434045001100 |
101 | fan bearing 6000RS | 434045001101 |
102 | ball bearing vibration damper | 434045001102 |
103 | screw ST4 x 15 | 434045001103 |
104 | standard washer | 434045001104 |
105 | screw ST3,9 x 9 | 434045001105 |
106 | threaded bar | 434045001106 |
107 | bevel gear | 434045001107 |
108 | screw ST4,2 x 22 | 434045001108 |
109 | locknut | 434045001109 |
110 | fixing block | 434045001110 |
111 | screw M5 x 20 | 434045001111 |
113 | attachment screw M5 x 14 | 434045001113 |
114 | standard washer | 434045001114 |
115 | spring washer | 434045001115 |
116 | adjustment rod | 434045001116 |
117 | contact pressure spring | 434045001117 |
118 | set screw M6 x 8 | 434045001118 |
120 | rubber ring | 434045001120 |
121 | crank | 434045001121 |
122 | cover | 434045001122 |
123 | crank handle | 434045001123 |
124 | screw | 434045001124 |
125 | locknut M6 | 434045001125 |
126 | handle cover | 434045001126 |
127 | sems screw M5x10 | 434045001127 |
128 | guide rod | 434045001128 |
129 | sems screw M5 x 15 | 434045001129 |
130 | clamping lever | 434045001130 |
131 | clamp screw | 434045001131 |
132 | standard washer | 434045001132 |
133 | standard washer | 434045001133 |
134 | end stop 0 degrees | 434045001134 |
135 | screw | 434045001135 |
136 | standard washer | 434045001136 |
137 | standard washer | 434045001137 |
140 | clamping lever | 434045001140 |
141 | screw M5 x 10 | 434045001141 |
142 | bolt | 434045001142 |
143 | fixing block | 434045001143 |
144 | screw | 434045001144 |
145 | connecting link | 434045001145 |
146 | screw M5 x 14 | 434045001146 |
147 | locknut | 434045001147 |
148 | link plate A | 434045001148 |
150 | link plate B | 434045001150 |
153 | locking pole front | 434045001153 |
154 | spring | 434045001154 |
155 | holder plate | 434045001155 |
156 | screw ST5 x 8 | 434045001156 |
157 | locking pole rear | 434045001157 |
158 | pawl nut | 434045001158 |
159 | guide bush | 434045001159 |
161 | attachment nut | 434045001161 |
162 | locking pole | 434045001162 |
163 | fixing block | 434045001163 |
164 | screw ST4,7 x 16 | 434045001164 |
165 | control PCB | 434045001165 |
166 | screw ST2,9 x 10 | 434045001166 |
167 | flange inside | 434045001167 |
168 | flange outside | 434045001168 |
169 | flange fixing screw M8 x 16 | 434045001169 |
170 | output shaft | 434045001170 |
171 | gear wheel | 434045001171 |
172 | retainer | 434045001172 |
173 | cotter | 434045001173 |
174 | protective cover | 434045001174 |
175 | screw ST4,9 x 17 | 434045001175 |
176 | saw blade cover left | 434045001176 |
177 | headless screw M6 x 8 | 434045001177 |
178 | saw blade cover right | 434045001178 |
179 | screw ST3,9 x 13 | 434045001179 |
180 | winged screw M6 x 24 | 434045001180 |
181 | spring | 434045001181 |
183 | saw blade faceplate | 434045001183 |
184 | screw ST4*8 | 434045001184 |
185 | motor housing | 434045001185 |
186 | cord grip | 434045001186 |
187 | screw ST3,9 x 12 | 434045001187 |
188 | sems screw M5 x 33 | 434045001188 |
189 | motor housing cover | 434045001189 |
190 | screw ST4,2 x 13 | 434045001190 |
191 | air deflector | 434045001191 |
192 | carrying handle | 434045001192 |
193 | additive hand hold left | 434045001193 |
194 | screw M4 x 12 | 434045001194 |
195 | nut M4 | 434045001195 |
197 | screw M4 x 12 | 434045001197 |
199 | side frame ahead | 434045001199 |
201 | cover plate | 434045001201 |
203 | gear cover | 434045001203 |
204 | ball bearing 6903 RS | 434045001204 |
205 | screw M5 x 8 | 434045001205 |
206 | sems screw M5 x 15 | 434045001206 |
207 | motor fitting | 434045001207 |
208 | pointer | 434045001208 |
210 | lower saw blade guard | 434045001210 |
211 | guide screw M5 x 10 | 434045001211 |
213 | switch cover | 434045001213 |
214 | screw | 434045001214 |
215 | housing cover | 434045001215 |
217 | switch housing | 434045001217 |
221 | cover flap | 434045001221 |
222 | screw | 434045001222 |
224 | chipping case | 434045001224 |
225 | extraction connector | 434045001225 |
226 | screw M6 x 16 | 434045001226 |
227 | front frame | 434045001227 |
228 | cover rear | 434045001228 |
229 | rubber foot | 434045001229 |
231 | cover front | 434045001231 |
232 | screw M6 x 45 | 434045001232 |
233 | standard washer | 434045001233 |
235 | cover rear | 434045001235 |
236 | rubber foot | 434045001236 |
238 | cover front | 434045001238 |
242 | rear frame | 434045001242 |
257 | tubular frame connector | 434045001257 |
258 | connection sleeve | 434045001258 |
259 | screw M6 x 45 | 434045001259 |
262 | splitting wedge attachment arm | 434045001262 |
264 | bracket ahead | 434045001264 |
265 | screw M5 x 25 | 434045001265 |
266 | Bearing bush - plastic | 434045001266 |
267 | bracket rear | 434045001267 |
271 | battery guiding plate | 434045001271 |
273 | push stick holder | 434045001273 |
275 | nut | 434045001275 |
276 | wing nut | 434045001276 |
277 | carriage bolt M6 x 25 | 434045001277 |
278 | retainer | 434045001278 |
279 | clamping bracket | 434045001279 |
280 | screw M4 x 14 | 434045001280 |
281 | clamping holding | 434045001281 |
286 | carriage bolt M6 x 30 | 434045001286 |
288 | wing nut | 434045001288 |
289 | guide bar | 434045001289 |
291 | plastics insert | 434045001291 |
292 | guiding rail holder | 434045001292 |
293 | pointer | 434045001293 |
294 | screw M4 x 8 | 434045001294 |
295 | guidance slider | 434045001295 |
296 | screw M4 x 8 | 434045001296 |
297 | clamping lever | 434045001297 |
299 | connecting lever | 434045001299 |
300 | reverse block | 434045001300 |
301 | fixing pin | 434045001301 |
302 | roll pin | 434045001302 |
303 | transmission block | 434045001303 |
304 | bolt | 434045001304 |
305 | return spring | 434045001305 |
306 | spring seat | 434045001306 |
308 | clamping plate | 434045001308 |
309 | jaw | 434045001309 |
310 | screw ST3.8 x 8 | 434045001310 |
311 | return spring | 434045001311 |
313 | operating rod | 434045001313 |
314 | locknut | 434045001314 |
315 | rod holder | 434045001315 |
316 | splitting wedge | 434045001316 |
317 | holder plate | 434045001317 |
319 | sliding rail | 434045001319 |
320 | pointer | 434045001320 |
321 | sems screw M4 x 6 | 434045001321 |
322 | beval scale | 434045001322 |
323 | screw | 434045001323 |
324 | locking handle | 434045001324 |
328 | stopper guide rail | 434045001328 |
329 | plastics insert | 434045001329 |
333 | supporting table | 434045001333 |
335 | washer | 434045001335 |
337 | table broadening right | 434045001337 |
338 | holder plate | 434045001338 |
339 | carriage bolt M6 x 15 | 434045001339 |
341 | sliding rail ahead | 434045001341 |
342 | plastic insert A | 434045001342 |
343 | plastic insert B | 434045001343 |
344 | stop screw M5 x 12 | 434045001344 |
346 | sliding rail back | 434045001346 |
347 | plastics insert | 434045001347 |
348 | screw | 434045001348 |
349 | standard washer | 434045001349 |
350 | fixing nut | 434045001350 |
351 | o-ring | 434045001351 |
352 | sheet-metal clamp | 434045001352 |
353 | pointer | 434045001353 |
355 | mounting rail | 434045001355 |
359 | rubber buffer | 434045001359 |
361 | washer | 434045001361 |
363 | saddle spacer washer | 434045001363 |
364 | cable switch unit/drive motor | 434045001364 |
365 | contacts | 434045001365 |
366 | holder plate | 434045001366 |
367 | screw | 434045001367 |
368 | ring spanner A | 434045001368 |
369 | ring spanner B | 434045001369 |
370 | push stick | 434045001370 |
371 | saw blade | 434045001371 |
372 | pasted scale A | 434045001372 |
373 | pasted scale B | 434045001373 |
374 | beval scale | 434045001374 |
901 | Rotor assembly | 434045001901 |
924 | guide bar assembly Further spareparts available | 434045001924 |
951 | Gear Housing Assembly | 434045001951 |
980 | beval scale assembly Further spareparts available | 434045001980 |
981 | stopper guide rail assembly Further spareparts available | 434045001981 |
