Запасные части и деталировка для стационарной пилы TC-TS 2225 U 4340515 (Ident number 11018)
Запчасти для стационарной пилы TC-TS 2225 U 4340515 (Ident number 11018)
Позиция | Артикул | |
2 | screw M12*20 | 434051501002 |
3 | washer | 434051501003 |
4 | extension table weldment | 434051501004 |
5 | right extension set label | 434051501005 |
6 | screw M6*20 | 434051501006 |
7 | extension bar fixed seat | 434051501007 |
8 | right up guard | 434051501008 |
9 | left up guard | 434051501009 |
10 | bolt M6*20 | 434051501010 |
11 | screw M4*8 | 434051501011 |
12 | cutting plate | 434051501012 |
14 | screw M5*8 | 434051501014 |
15 | main working table | 434051501015 |
16 | bracket extension rod | 434051501016 |
17 | extension bracket weldment | 434051501017 |
18 | rear work table limit sleeve | 434051501018 |
19 | extention table locking knob | 434051501019 |
20 | left extension bar | 434051501020 |
21 | mounting plate | 434051501021 |
22 | bolt M6*16 | 434051501022 |
23 | short scale support | 434051501023 |
24 | left extension set label | 434051501024 |
25 | fixed seat | 434051501025 |
26 | screw M6*16 assy. | 434051501026 |
27 | torsion spring | 434051501027 |
28 | angle protective plate | 434051501028 |
29 | screw ST4.2*10 | 434051501029 |
30 | protective plate platen | 434051501030 |
31 | gap gasket | 434051501031 |
32 | rotating friction plate | 434051501032 |
33 | rotary seat front | 434051501033 |
34 | scale support plug left | 434051501034 |
35 | scale support | 434051501035 |
36 | label for long scale | 434051501036 |
37 | scale support plug right | 434051501037 |
38 | right extension bar | 434051501038 |
39 | board plug A | 434051501039 |
40 | angle device board | 434051501040 |
41 | guide bar | 434051501041 |
42 | board plug B | 434051501042 |
43 | bolt M6*25 | 434051501043 |
44 | angle gauge | 434051501044 |
45 | angle gauge locking handle | 434051501045 |
46 | big washer 4 | 434051501046 |
47 | lower guard | 434051501047 |
48 | bolt M8*16 | 434051501048 |
49 | big washer 8 | 434051501049 |
50 | outer flange | 434051501050 |
51 | blade with teeth 48 254*30 | 434051501051 |
52 | inner flange | 434051501052 |
53 | screw M4*12 assy. | 434051501053 |
54 | blade cover plate | 434051501054 |
55 | screw M4*10 assy. | 434051501055 |
56 | front cover | 434051501056 |
57 | bearing 6003 | 434051501057 |
58 | woodruff key 4X5X13 | 434051501058 |
59 | output shaft | 434051501059 |
60 | bolt M6*20 | 434051501060 |
61 | big gear | 434051501061 |
62 | riving knife platen | 434051501062 |
63 | circlip 17 for shaft | 434051501063 |
65 | riving knife | 434051501065 |
66 | bolt M6*20 | 434051501066 |
67 | riving knife fixing seat | 434051501067 |
68 | lifting friction pad | 434051501068 |
69 | screw M6*10 assy. | 434051501069 |
70 | angle seat A | 434051501070 |
71 | motor fixing plate weldment | 434051501071 |
72 | lifting nut | 434051501072 |
74 | screw M5*30 assy. | 434051501074 |
75 | wind guard | 434051501075 |
76 | screw ST4.8*60 | 434051501076 |
77 | stator assy. | 434051501077 |
78 | bearing 6201 | 434051501078 |

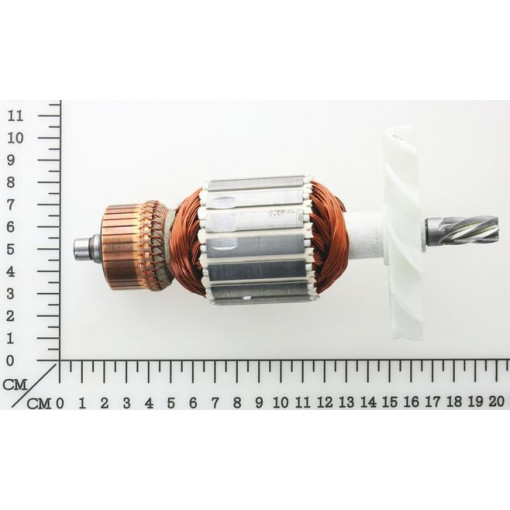

79 | rotor assy. | 434051501079 |
80 | bearing 6000 | 434051501080 |
81 | housing | 434051501081 |
82 | connecting line | 434051501082 |
83 | rear cover | 434051501083 |
84 | cable press board | 434051501084 |
85 | screw ST4.2*16 | 434051501085 |
86 | brush holder | 434051501086 |
87 | carbon brush 230V pair | 434051501087 |
88 | brush cover | 434051501088 |
89 | washer 5 | 434051501089 |
90 | screw M5*12 | 434051501090 |
91 | screw rod | 434051501091 |
92 | bevel gear | 434051501092 |
93 | screw M4*20 with washer | 434051501093 |
94 | screw pole spacer | 434051501094 |
95 | washer 8 | 434051501095 |
96 | spring washer 4 | 434051501096 |
97 | screw M4*10 | 434051501097 |
98 | bolt M6*25 | 434051501098 |
99 | blade gasket | 434051501099 |
100 | blade locating plate | 434051501100 |
101 | main body | 434051501101 |
102 | plug with cable | 434051501102 |
103 | cable sheath | 434051501103 |
104 | screw ST4.2*20 | 434051501104 |
105 | connection wire box pressing b | 434051501105 |
106 | connection wire box | 434051501106 |
107 | inductance | 434051501107 |
108 | capacitance 0.22 | 434051501108 |
109 | switch fixed board | 434051501109 |
110 | switch lock | 434051501110 |
111 | emergency stop switch board | 434051501111 |
112 | switch axis of rotation | 434051501112 |
113 | switch | 434051501113 |
114 | screw M5*14 | 434051501114 |
115 | teeth bar | 434051501115 |
116 | washer 5 | 434051501116 |
117 | angle label | 434051501117 |
118 | angle point | 434051501118 |
119 | lock knob | 434051501119 |
120 | extra big washer 6 | 434051501120 |
121 | screw M6*12 | 434051501121 |
122 | big washer 6 | 434051501122 |
123 | limited piece | 434051501123 |
124 | handle cover | 434051501124 |
126 | screw M5*16 with washer | 434051501126 |
127 | crank | 434051501127 |
128 | hand wheel | 434051501128 |
129 | lifting rocker | 434051501129 |
130 | screw M5*12 assy. Further spareparts available | 434051501130 |
131 | screw lever fixing seat | 434051501131 |
132 | rocker spacer | 434051501132 |
133 | angle fixed seat | 434051501133 |
134 | angle base B | 434051501134 |
135 | nut M6 | 434051501135 |
136 | spring washer 6 | 434051501136 |
137 | bolt M6*12 | 434051501137 |
138 | supporting 6 holes | 434051501138 |
138 | supporting 4 holes | 434051501801 |
139 | leg plastic sleeve | 434051501139 |
140 | anti-falling support | 434051501140 |
141 | bolt M6*12 | 434051501141 |
142 | support leg 6 holes f.strut | 434051501142 |
142 | support leg 4 holes f.strut | 434051501800 |
143 | bolt M6*16 | 434051501143 |
144 | pusher | 434051501144 |
145 | locating spanner | 434051501145 |
146 | blade wrench | 434051501146 |
147 | rubber foot | 434051501147 |
148 | hand holding piece | 434051501148 |
149 | soft start | 434051501149 |
150 | upper up guard | 434051501150 |
151 | screw ST4.2*10 | 434051501151 |
152 | screw M6*25 | 434051501152 |
153 | screw ST4.2*14 | 434051501153 |
154 | locknut M5 | 434051501154 |
155 | washer | 434051501155 |
156 | bolt M6*25 | 434051501156 |
157 | support weldment | 434051501157 |
901 | guiding rule assembly Further spareparts available | 434051501901 |
902 | middle cover assy. Further spareparts available | 434051501902 |
903 | lifting handle assy. Further spareparts available | 434051501903 |
904 | screw assy. M4*10 | 434051501904 |
