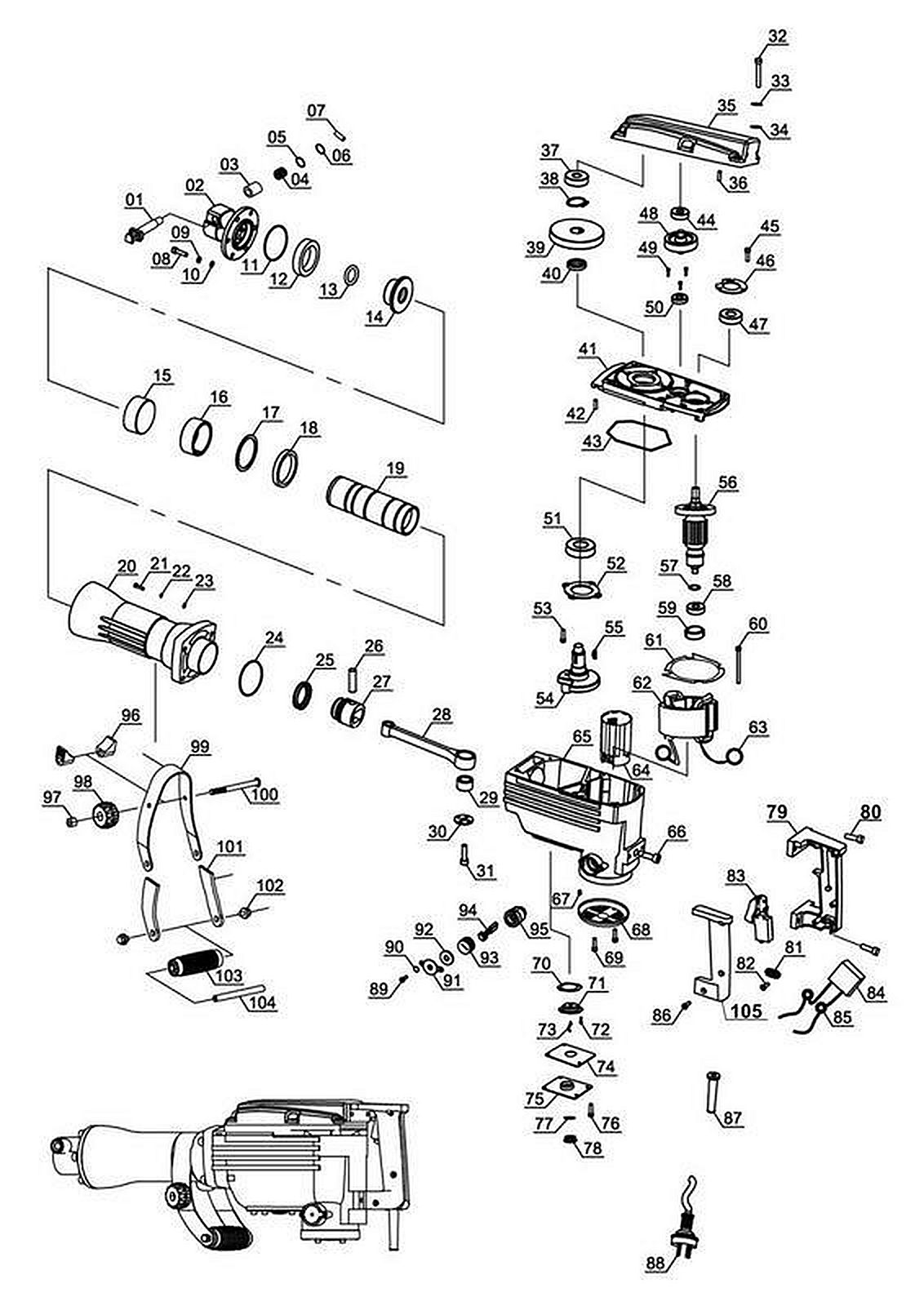

Запасные части и деталировка для отбойного молотка 4139087 (Ident number 11018)
Таблица запчастей для отбойного молотка 4139087 (Ident number 11018)
Позиция | Артикул | |
1 | stop lever | 413906702001 |
2 | front cover | 413906702002 |
3 | bush | 413906702003 |
4 | stop lever spring | 413906702004 |
5 | ring | 413906702005 |
6 | flat washer | 413906702006 |
7 | pin | 413906702007 |
8 | bolt M8X30 | 413906702008 |
9 | spring washer 10 | 413906702009 |
10 | flat washer 10 | 413906702010 |
11 | O ring | 413906702011 |
12 | bumper | 413906702012 |
13 | O ring 23.5X5.2 | 413906702013 |
14 | shank sleeve | 413906702014 |
15 | rubber sleeve | 413906702015 |
16 | sheath (60Si2Mn) | 413906702016 |
17 | washer 68.4X57.6X2 | 413906702017 |
18 | seal ring (PU) | 413906702018 |
19 | striker | 413906702019 |
20 | cylinder (Einhell Red) | 413908701020 |
21 | bolt M8X35 | 413906702021 |
22 | spring washer 8 | 413906702022 |
23 | flat washer 8 | 413906702023 |
24 | O ring 58x2 | 413906702024 |
25 | seal ring | 413906702025 |
26 | piston pin 12X44 | 413906702026 |
27 | piston (ZL102) | 413906702027 |
28 | connecting rod | 413906702028 |
29 | bearing NK18/20 | 413906702029 |
30 | crank washer | 413906702030 |
31 | bolt M8X20 | 413906702031 |
32 | bolt M6X45 | 413906702032 |
33 | spring washer 6 | 413906702033 |
34 | flat washer 6 | 413906702034 |
35 | gear cover (Black) | 413908701035 |
36 | pin | 413906702036 |
37 | bearing 6302 | 413906702037 |
38 | circlip for shaft 22 | 413906702038 |
39 | gear | 413906702039 |
40 | space | 413906702040 |
41 | middle cover (Einhell Red) | 413908701041 |
42 | pin 5X14 | 413906702042 |
43 | seal ring | 413906702043 |
44 | ball bearing 6201 | 413906702044 |
45 | bolt 5X16 | 413906702045 |
46 | bearing press plate | 413906702046 |
47 | ball bearing 6203 | 413906702047 |
48 | pinion | 413906702048 |
49 | bolt | 413906702049 |
50 | ball bearing 6001 | 413906702050 |
51 | ball bearing 6205 | 413906702051 |
52 | bearing press plate | 413906702052 |
53 | bolt 5X16 | 413906702053 |
54 | crank shaft | 413906702054 |
55 | woodruff key | 413906702055 |
56 | rotor | 413906702056 |
57 | washer | 413906702057 |
58 | ball bearing 6200 | 413906702058 |
59 | bush | 413906702059 |
60 | bolt for stator ST5X60 | 413906702060 |
61 | air block plate | 413906702061 |
62 | stator | 413906702062 |
63 | brush terminal | 413906702063 |
64 | sleeve | 413906702064 |
65 | housing (Einhell Red) | 413908701065 |
66 | wire bush | 413906702066 |
67 | bolt 5x6 | 413906702067 |
68 | rear cover | 413906702068 |
69 | bolt M5x16 | 413906702069 |
70 | seal washer for oil core brack | 413906702070 |
71 | oil core bracket | 413906702071 |
72 | bolt M4x12 | 413906702072 |
73 | oil core | 413906702073 |
74 | seal ring | 413906702074 |
75 | oil cover | 413906702075 |
76 | bolt M5x14 | 413906702076 |
77 | seal ring | 413906702077 |
78 | oil gauge | 413906702078 |
79 | right handle | 413906702079 |
80 | bolt M6x25 | 413906702080 |
81 | press plate | 413906702081 |
82 | bolt 4x18 | 413906702082 |
83 | switch (Einhell Red) | 413908701083 |
84 | capacitor | 413906702084 |
85 | inductance | 413906702085 |
86 | bolt 4x18 | 413906702086 |
87 | cord sleeve | 413906702087 |
88 | power cable plug | 413906702088 |
89 | bolt 4x12 | 413906702089 |
90 | spring washer 4 | 413906702090 |
91 | cap cover | 413906702091 |
92 | cap washer | 413906702092 |
93 | brush cap | 413906702093 |
94 | carbon brush (Pair) | 413906702094 |
95 | brush holder | 413906702095 |
96 | handle bracket | 413906702096 |
97 | nut M10 | 413906702097 |
98 | knob for handle | 413906702098 |
99 | clasp | 413906702099 |
100 | bolt M10x110 | 413906702100 |
101 | handle sleeve | 413906702101 |
102 | bolt M8X12 | 413906702102 |
103 | front handle | 413908701103 |
104 | pin for front handle | 413906702104 |
105 | left handle | 413906701105 |
800 | drill set (2pcs) | 413906702800 |
801 | BMC (Einhell Classic) | 413908701801 |
802 | Wrench | 413906702802 |
