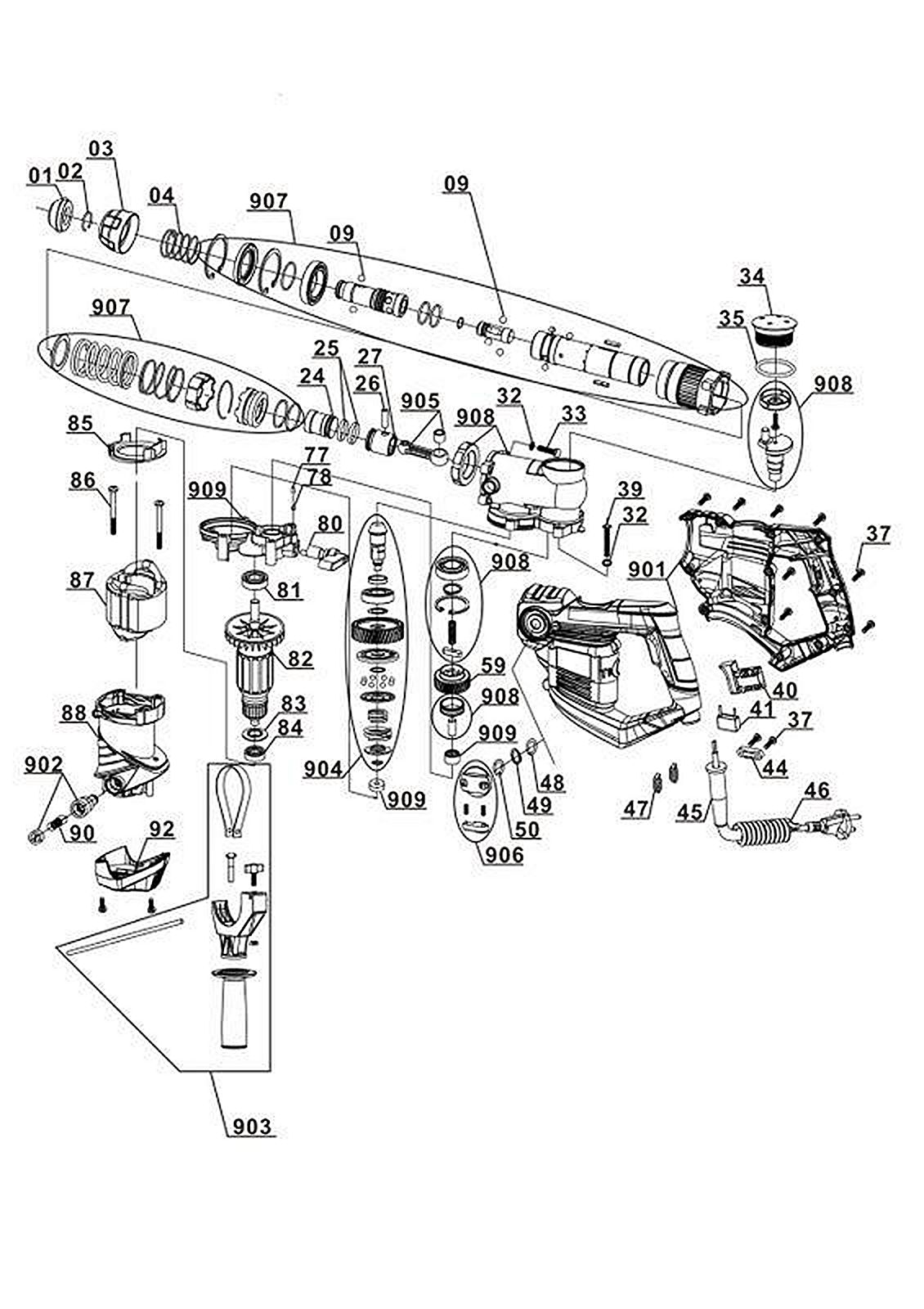

Запасные части и деталировка для перфоратора TC-RH 900 4258237 (Ident number 11012)
Таблица запчастей для перфоратора TC-RH 900 4258237 (Ident number 11012)
Позиция | Артикул | |
1 | front cover | 425823501001 |
2 | circlip for shaft | 425823501002 |
3 | steel ball brasket | 425823501003 |
4 | spring for ball brasket | 425823501004 |
9 | steel ball 7.14 | 425823501009 |
24 | air hammer | 425823501024 |
25 | O-ring 18x3.05 | 425823501025 |
26 | piston pin | 425823501026 |
27 | inner piston pin (Alu) | 425823501027 |
32 | spring washer 5 | 425823501032 |
33 | hex screw M5x20 | 425823501033 |
34 | cover | 425823501034 |
35 | O-ring 37x1.8 | 425823501035 |
39 | self-tapping screw ST4.8x50 | 425823501039 |
40 | dirt-proof switch (Black) | 425823701040 |
41 | capacitance 0.33-F | 425823501041 |
44 | pressing plate for cord | 425823501044 |
45 | cord sleeve | 425823501045 |
46 | power cord | 425823501046 |
47 | inductance(pair) | 425823501047 |
48 | O-ring 9.5x1.8 | 425823501048 |
49 | circlip for shaft 12 | 425823501049 |
50 | wave washer 12 | 425823501050 |
59 | first gear 4:28 | 425823501059 |
77 | rubber column | 425823501077 |
78 | steel ball Sf4 | 425823501078 |
80 | lower button | 425823501080 |
81 | bearing 6000-2RS/Z2 | 425823501081 |
82 | rotor | 425823501082 |
83 | baffle 608 | 425823501083 |
84 | bearing 608-2Z/Z2 | 425823501084 |
85 | air reflector | 425823501085 |
86 | self-tapping screw ST4x55 | 425823501086 |
87 | stator | 425823501087 |
88 | housing (Einhell Red) | 425823701088 |
90 | carbon brush (pair) | 425823501090 |
92 | rear cover | 425823501092 |
800 | BMC (Einhell Classic) | 425823701800 |
801 | grease box | 425823501801 |
802 | dust cap | 425823501802 |
803 | seal for middle cover | 425823501803 |
901 | handle cpl. (Einhell Red) Further spareparts available | 425823701901 |
902 | brush holder (pair) Further spareparts available | 425823501902 |
903 | additional handle (Black) Further spareparts available | 425823701903 |
904 | 2nd gear cpl. Further spareparts available | 425823501904 |
905 | connecting rod assy. | 425823501905 |
906 | knob assy. (Black) Further spareparts available | 425823701906 |
907 | cylinder cpl. Further spareparts available | 425823501907 |
908 | eccentricity shaft cpl. Further spareparts available | 425823501908 |
909 | middle cover assy. | 425823501909 |
