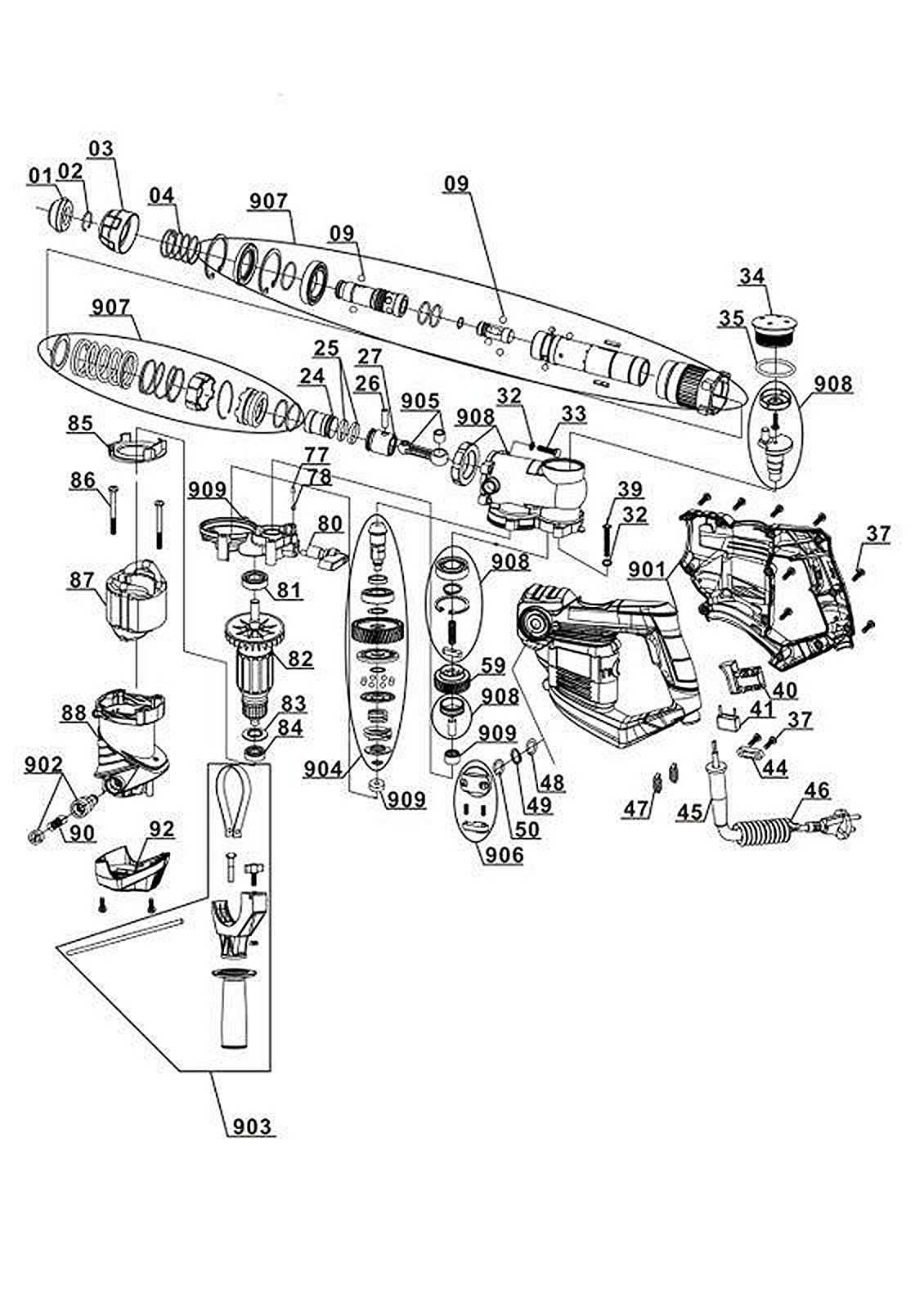

Запасные части и деталировка для перфоратора TC-RH 900 4258237 (Ident number 11038)
Показано с 1 по 4 из 4 (всего 1 страниц)
Таблица запчастей для перфоратора TC-RH 900 4258237 (Ident number 11038)
| Позиция | Артикул | |
| 1 | front cover | 425823501001 |
| 2 | circlip for shaft | 425823501002 |
| 3 | steel ball brasket | 425823501003 |
| 4 | spring for ball brasket | 425823501004 |
| 9 | steel ball 7.14 | 425823501009 |
| 24 | air hammer | 425823501024 |
| 25 | O-ring 18x3.05 | 425823501025 |
| 26 | piston pin | 425823501026 |
| 27 | inner piston pin (Alu) | 425823501027 |
| 32 | spring washer 5 | 425823501032 |
| 33 | hex screw M5x20 | 425823501033 |
| 34 | cover | 425823501034 |
| 35 | O-ring 37x1.8 | 425823501035 |
| 39 | self-tapping screw ST4.8x50 | 425823501039 |
| 40 | dirt-proof switch (Black) | 425823701040 |
| 41 | capacitance 0.33-F | 425823703041 |
| 44 | pressing plate for cord | 425823501044 |
| 45 | cord sleeve | 425823501045 |
| 46 | power cord | 425823501046 |
| 47 | inductance(pair) | 425823501047 |
| 48 | O-ring 9.5x1.8 | 425823501048 |
| 49 | circlip for shaft 12 | 425823501049 |
| 50 | wave washer 12 | 425823501050 |
| 59 | first gear 4:28 | 425823501059 |
| 77 | rubber column | 425823501077 |
| 78 | steel ball Sf4 | 425823501078 |
| 80 | lower button | 425823501080 |
| 81 | bearing 6000-2RS | 425823703081 |
| 82 | rotor | 425823501082 |
| 83 | baffle 608 | 425823501083 |
| 84 | bearing 608-2RS | 425823703084 |
| 85 | air reflector | 425823501085 |
| 86 | self-tapping screw ST4x55 | 425823501086 |
| 87 | stator | 425823501087 |
| 88 | housing (Einhell Red) | 425823701088 |
| 90 | carbon brush (pair) | 425823501090 |
| 92 | rear cover | 425823501092 |
| 800 | BMC (Einhell Classic) | 425823701800 |
| 801 | grease box | 425823501801 |
| 802 | dust cap | 425823501802 |
| 803 | seal for middle cover | 425823501803 |
| 901 | handle assembly (Einhell Red) Further spareparts available | 425823703901 |
| 902 | brush holder (pair) Further spareparts available | 425823501902 |
| 903 | additional handle (Black) Further spareparts available | 425823703903 |
| 904 | 2nd gear assembly Further spareparts available | 425823703904 |
| 905 | connecting rod assembly Further spareparts available | 425823703905 |
| 906 | knob assy. (Black) Further spareparts available | 425823701906 |
| 907 | cylinder cpl. Further spareparts available | 425823501907 |
| 908 | eccentricity shaft assembly Further spareparts available | 425823703908 |
| 909 | middle cover assembly Further spareparts available | 425823703909 |
