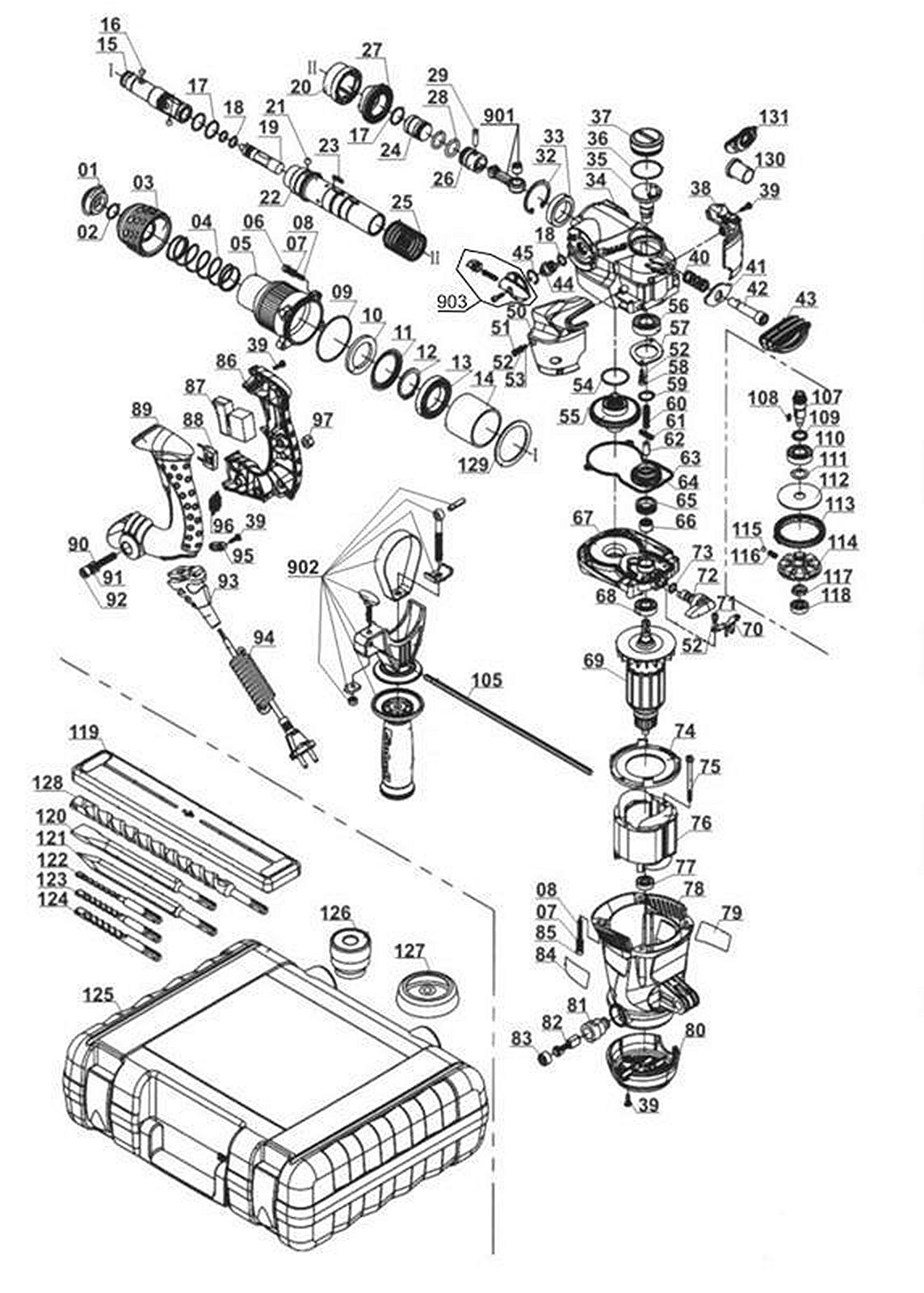

Запасные части и деталировка для перфоратора RT-RH 32 4258440 (Ident number 01017)

Показано с 1 по 9 из 9 (всего 1 страниц)

Таблица запчастей для перфоратора RT-RH 32  4258440 (Ident number 01017)

Позиция Артикул
1 dust cap 425844001001
2 steel wire retainer ring 425844001002
3 steel ball holder 425844001003
4 spring 425844001004
5 cylinder case 425844001005
6 hex screw 425844001006
7 spring washer 425844001007
8 flat washer 425844001008
9 o-ring 425844001009
10 felt ring 425844001010
11 washer 425844001011
12 circlip 425844001012
13 bearing 425844001013
14 distance ring 425844001014
15 rotate sheath 425844001015
16 steel ball 425844001016
17 o-ring 19,8 x 2,1 425844001017
18 o-ring 425844001018
19 Ram 425844001019
20 clutch 425844001020
21 steel ball 425844001021
22 cylinder 425844001022
23 flat key 425844001023
24 Striker 425844001024
25 spring 425844001025
26 piston 425844001026
27 big gear 425844001027
28 o-ring 425844001028
29 piston pin 425844001029
32 circlip 425844001032
33 oil bearing 425844001033
34 gearbox 425844001034
35 crank shaft 425844001035
36 o ring 425844001036
37 oil cap 425844001037
38 right back cover 425844001038
39 self-tapping screw 425844001039
40 concussion spring 425844001040
41 washer 425844001041
42 bolt 425844001042
43 sheath 425844001043
44 knob handle 425844001044
45 circlip 425844001045
50 left back cover 425844001050
51 cross screw 425844001051
52 spring washer 425844001052
53 flat washer 425844001053
54 o-ring 425844001054
55 second gear subassembly Further spareparts available 425844001055
56 bearing 425844001056
57 bearing press plate 425844001057
58 cross screw 425844001058
59 circlip 425844001059
60 spring 425844001060
61 flat key 425844001061
62 pin 425844001062
63 gasket 425844001063
64 first gear 425844001064
65 supporting sleeve 425844001065
66 needle bearing 425844001066
67 gearbox cover 425844001067
68 bearing 425844001068
69 rotor 425844001069
70 locking plate 425844001070
71 cross screw 425844001071
72 mode selector switch 425844001072
73 o ring 425844001073
74 wind guide 425844001074
75 self-tapping screw 425844001075
76 stator 425844001076
77 bearing 425844001077
78 motor casing 425844001078
79 scutcheon 425844001079
80 rear cover 425844001080
81 brush holder 425844001081
82 carbon brush 425844001082
83 brush holder cap 425844001083
84 nameplate 425844001084
85 hex screw 425844001085
86 right handle 425844001086
87 switch 425844001087
88 capacitance 425844001088
89 left handle 425844001089
90 flat washer 425844001090
91 spring washer 425844001091
92 hex screw 425844001092
93 cable sheath 425844001093
94 cable plug assy. 425844001094
95 cable clip plate 425844001095
96 square inductance 425844001096
97 hex nut 425844001097
105 depth gauge 425844001105
119 bits box 425844001119
120 flat SDS chisel 250mm 425844001120
121 pointed SDS chisel 250mm 425844001121
122 SDS Drill (Cr/V) 8x150 425844001122
123 SDS Drill (Cr/V) 10x150 425844001123
124 SDS Drill (Cr/V) 12x150 425844001124
125 BMC 425844001125
126 small box with grease 425844001126
127 dust cup 425844001127
128 SDS Drill (Cr/V) 22x350 425844001128
129 washer 425844001129
130 sheath 425844001130
131 cover 425844001131
901 connecting rod with needle bea Further spareparts available 425844001901
902 additional handle cpl Further spareparts available 425844001902
903 rotation stop facility Further spareparts available 425844001903
