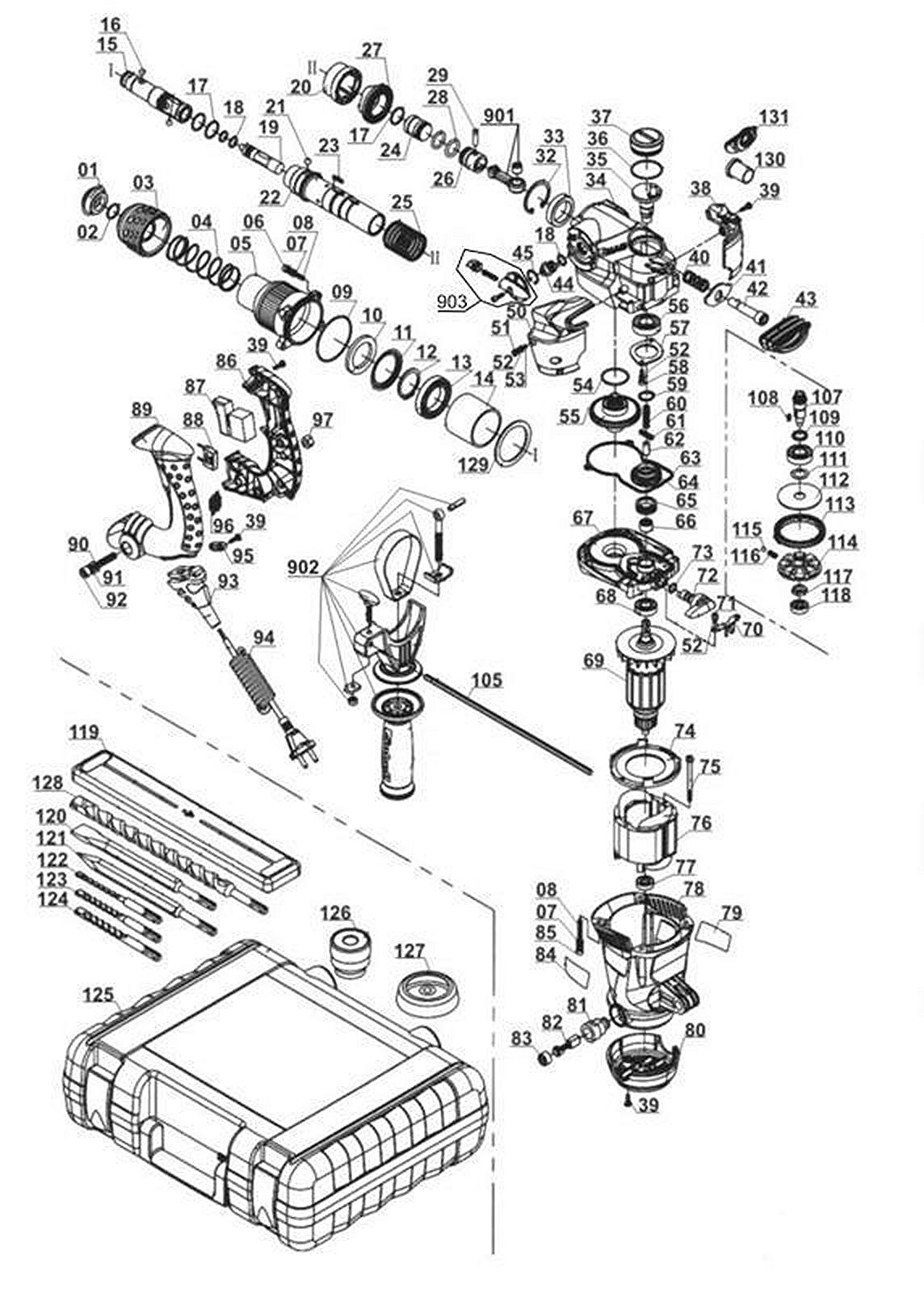

Запасные части и деталировка для перфоратора RT-RH 32 4258440 (Ident number 01028)
Таблица запчастей для перфоратора RT-RH 32 4258440 (Ident number 01028)
Позиции | Артикул | |
1 | dust cap | 425844001001 |
2 | steel wire retainer ring | 425844001002 |
3 | steel ball holder | 425844001003 |
4 | spring | 425844001004 |
5 | cylinder case | 425844001005 |
6 | hex screw | 425844001006 |
7 | spring washer | 425844001007 |
8 | flat washer | 425844001008 |
9 | o-ring | 425844001009 |
10 | felt ring | 425844001010 |
11 | washer | 425844001011 |
12 | circlip | 425844001012 |
13 | bearing | 425844001013 |
14 | distance ring | 425844001014 |
15 | rotate sheath | 425844001015 |
16 | steel ball | 425844001016 |
17 | o-ring 19,8 x 2,1 | 425844001017 |
18 | o-ring | 425844001018 |
19 | Ram | 425844001019 |
20 | clutch | 425844001020 |
21 | steel ball | 425844001021 |
22 | cylinder | 425844001022 |
23 | flat key | 425844001023 |
24 | Striker | 425844001024 |
25 | spring | 425844001025 |
26 | piston | 425844001026 |
27 | big gear | 425844001027 |
28 | o-ring | 425844001028 |
29 | piston pin | 425844001029 |
32 | circlip | 425844001032 |
33 | oil bearing | 425844001033 |
34 | gearbox | 425844001034 |
35 | crank shaft | 425844001035 |
36 | o ring | 425844001036 |
37 | oil cap | 425844001037 |
38 | right back cover | 425844001038 |
39 | self-tapping screw | 425844001039 |
40 | concussion spring | 425844001040 |
41 | washer | 425844001041 |
42 | bolt | 425844001042 |
43 | sheath | 425844001043 |
44 | knob handle | 425844001044 |
45 | circlip | 425844001045 |
50 | left back cover | 425844001050 |
51 | cross screw | 425844001051 |
52 | spring washer | 425844001052 |
53 | flat washer | 425844001053 |
54 | o-ring | 425844001054 |
55 | second gear subassembly Further spareparts available | 425844001055 |
56 | bearing | 425844001056 |
57 | bearing press plate | 425844001057 |
58 | cross screw | 425844001058 |
59 | circlip | 425844001059 |
60 | spring | 425844001060 |
61 | flat key | 425844001061 |
62 | pin | 425844001062 |
63 | gasket | 425844001063 |
64 | first gear | 425844001064 |
65 | supporting sleeve | 425844001065 |
66 | needle bearing | 425844001066 |
67 | gearbox cover | 425844001067 |
68 | bearing | 425844001068 |
69 | rotor | 425844001069 |
70 | locking plate | 425844001070 |
71 | cross screw | 425844001071 |
72 | mode selector switch | 425844001072 |
73 | o ring | 425844001073 |
74 | wind guide | 425844001074 |
75 | self-tapping screw | 425844001075 |
76 | stator | 425844001076 |
77 | bearing | 425844001077 |
78 | motor casing | 425844001078 |
79 | scutcheon | 425844001079 |
80 | rear cover | 425844001080 |
81 | brush holder | 425844001081 |
82 | carbon brush | 425844001082 |
83 | brush holder cap | 425844001083 |
84 | nameplate | 425844001084 |
85 | hex screw | 425844001085 |
86 | right handle | 425844001086 |
87 | switch | 425844001087 |
88 | capacitance | 425844001088 |
89 | left handle | 425844001089 |
90 | flat washer | 425844001090 |
91 | spring washer | 425844001091 |
92 | hex screw | 425844001092 |
93 | cable sheath | 425844001093 |
94 | cable plug assy. | 425844001094 |
95 | cable clip plate | 425844001095 |
96 | square inductance | 425844001096 |
97 | hex nut | 425844001097 |
105 | depth gauge | 425844001105 |
119 | bits box | 425844001119 |
120 | flat SDS chisel 250mm | 425844001120 |
121 | pointed SDS chisel 250mm | 425844001121 |
122 | SDS Drill (Cr/V) 8x150 | 425844001122 |
123 | SDS Drill (Cr/V) 10x150 | 425844001123 |
124 | SDS Drill (Cr/V) 12x150 | 425844001124 |
125 | BMC | 425844001125 |
126 | small box with grease | 425844001126 |
127 | dust cup | 425844001127 |
128 | SDS Drill (Cr/V) 22x350 | 425844001128 |
129 | washer | 425844001129 |
130 | sheath | 425844001130 |
131 | cover | 425844001131 |
901 | connecting rod with needle bea Further spareparts available | 425844001901 |
902 | additional handle cpl Further spareparts available | 425844001902 |
903 | rotation stop facility Further spareparts available | 425844001903 |
