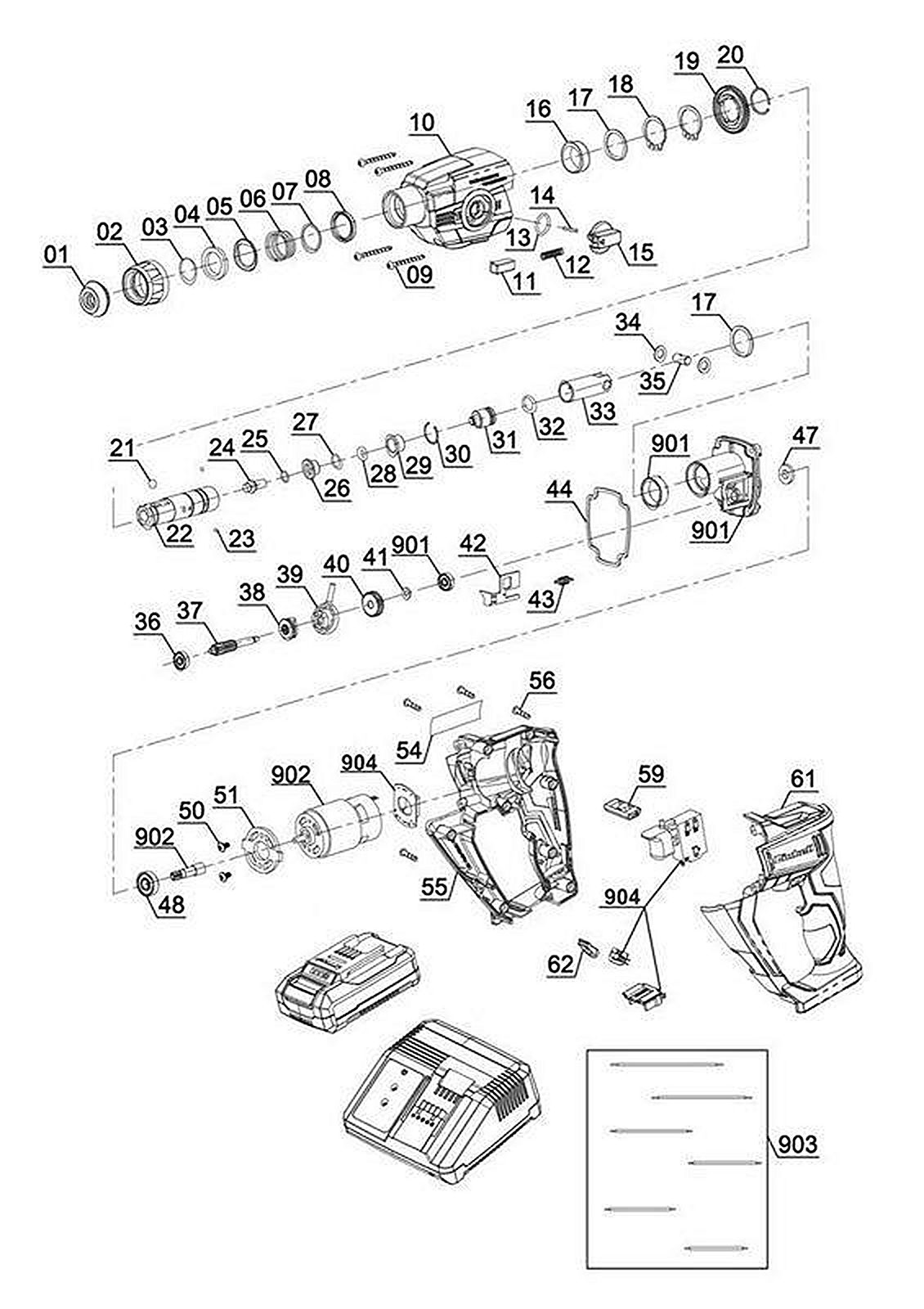

Запасные части и деталировка для перфоратора PXC TE-HD 18 Li-Solo 4513812 (Ident number 21021)

Показано с 1 по 7 из 7 (всего 1 страниц)

Запчасти для перфоратора PXC TE-HD 18 Li-Solo 4513812 (Ident number 21021)

Позиции Артикул
1 Dust Cap 451381101001
2 SDS lock cover 451381101002
3 Axile retainer ring 21 451381101003
4 Washerf21×f30×4 451381101004
5 Butterfly ring 21 451381101005
6 Tower spring 451381101006
7 Washerf21.2×f25×1 451381101007
8 Oil seal 22×30×5 451381101008
9 Self-tapping screw ST4.2×38-F 451381101009
10 Front housing 451381101010
11 Locking knob 451381101011
12 Knob spring 451381101012
13 O seal ring 11×1.5 451381101013
14 Pin P3×15.8 451381101014
15 Knob 451381101015
16 Needle bearing HK2210 451381101016
17 Washerf22.3×f28.3×1 451381101017
18 Axile retainer ring 22 451381101018
19 Big gear 451381101019
20 Circlip 22 451381101020
21 Steel ball 8 451381101021
22 Impact shaft 451381101022
23 Steel ball 3 451381101023
24 Hammer pillar 451381101024
25 O seal ring 8.75×1.8 451381101025
26 Position sleeve 451381101026
27 O seal ring 11×1.5 451381101027
28 O seal ring 7.5×2.65 451381101028
29 Fixed sleeve 451381101029
30 Retainer ring 18.5×1.2 451381101030
31 Strike hammer 451381101031
32 O seal ring 11.2×2.5 451381101032
33 Cylinder 451381101033
34 Cylinder pin washer 451381101034
35 Cylinder pin 451381101035
36 Bearing 625-2Z 451381101036
37 Transmission shaft 451381101037
38 Clutch 451381101038
39 Swing staff bearing 451381101039
40 Small gear 451381101040
41 Washerf5.2×f10×1 451381101041
42 Slide board 451381101042
43 Slide board spring 451381101043
44 Seal ring 451381101044
47 Felt 451381101047
48 Bearing 608-2Z 451381101048
50 Cross recessed countersunk hea 451381101050
51 Motor board 451381101051
54 Name plate 451381202054
55 Right housing 451381101055
56 Self-tapping screw ST4.2×16-F 451381101056
59 Switch plate 451381101059
61 Left housing (Einhell) 451381101061
62 Lampshade 451381101062
99 color box 451381202099
800 BMC 451381101800
801 SDS-Plus-Adapter 451381101801
901 Alu seat assembly 451381101901
902 motor assembly with PCB board Further spareparts available 451381101902
903 connecting line assembly 451381101903
904 Switch Further spareparts available 451381101904
