Запасные части и деталировка для полировальной машины CC-PO 1100/2E 2093265 (Ident number отсутствует)


1 ₽
Нет отзывов
Нет в наличии
1 ₽
Нет отзывов
Нет в наличии
Показано с 1 по 3 из 3 (всего 1 страниц)

Таблица запчастей для полировальной машины CC-PO 1100/2E 2093265 (Ident number отсутствует)

Позиция Артикул
1 power plug and cord 209326001001
2 cord sleeve 209326001002
3 screw 209326001003
4 pressing cord board 209326001004
5 left softgrip handle (Red) 209326401005
6 screw 209326001006

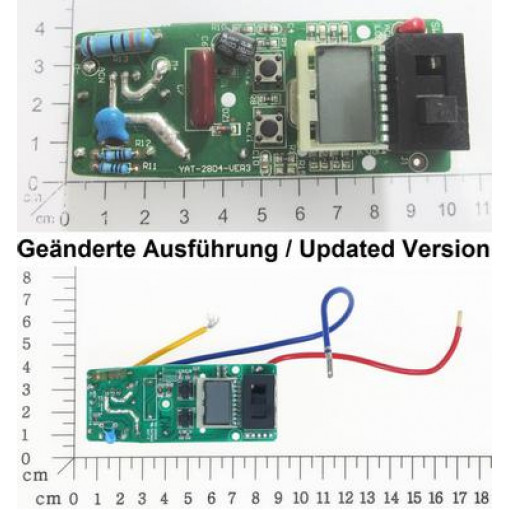

7 Controlling Board 209326001007
8 button (+) 209326001008
9 button (-) 209326001009
10 digital lens 209326001010
11 push hand of switch (Black) 209326401011
12 circuit board panel 209326001012
13 base plate 209326001013
14 electrical inductance 209326001014
15 carbon brush holder 209326001015
16 carbon brush (pair) 209326001016
17 terminal strip 209326001017
18 screw 209326001018
19 right softgrip handle (Red) 209326401019
20 housing (Einhell Red) 209326401020
21 connecting wire 209326001021

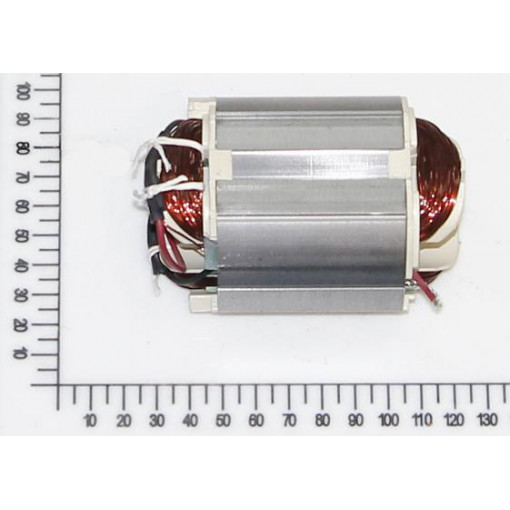

22 stator 209326201022
23 bearing sleeve 209326001023
24 bearing 209326001024
25 screw 209326001025
26 wind defender 209326001026

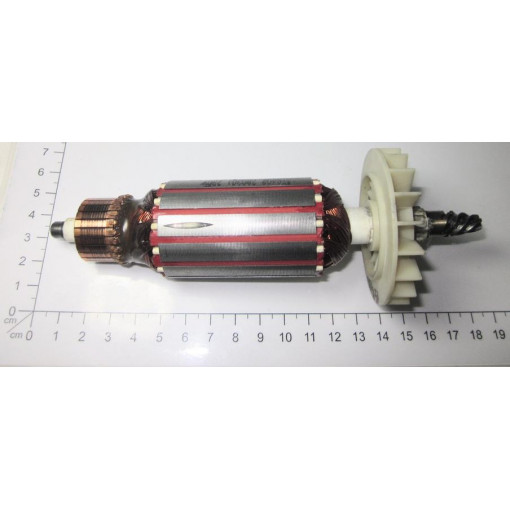

27 rotor 209326001027
31 screw 209326001031
32 jump ring 209326001032
33 screw 209326001033
34 pressing board 209326001034
35 bearing 209326001035
38 knob (Black) 209326401038
39 SPRING 209326001039
40 screw 209326001040
41 screw 209326001041
43 jump ring 209326001043
44 washer 209326001044
45 pin 209326001045
46 gear 209326001046
47 jump ring 209326001047
48 bearing 209326001048
49 cover 209326001049
50 screw 209326001050
51 key 209326001051
52 polishing disc-plate 209326001052
53 polishing tray 209326201053
54 wool sleeve 209326001054
55 inner hexagon spanner 209326001055
800 synthetic polishing bonnet 209326001800
801 sanding paper (60 grains) 209326001801
802 sanding paper (80 grains) 209326001802
803 sanding paper (120 grains) 209326001803
901 additional handle cpl. Further spareparts available 209326001901
902 gear box with bearing 209326001902
