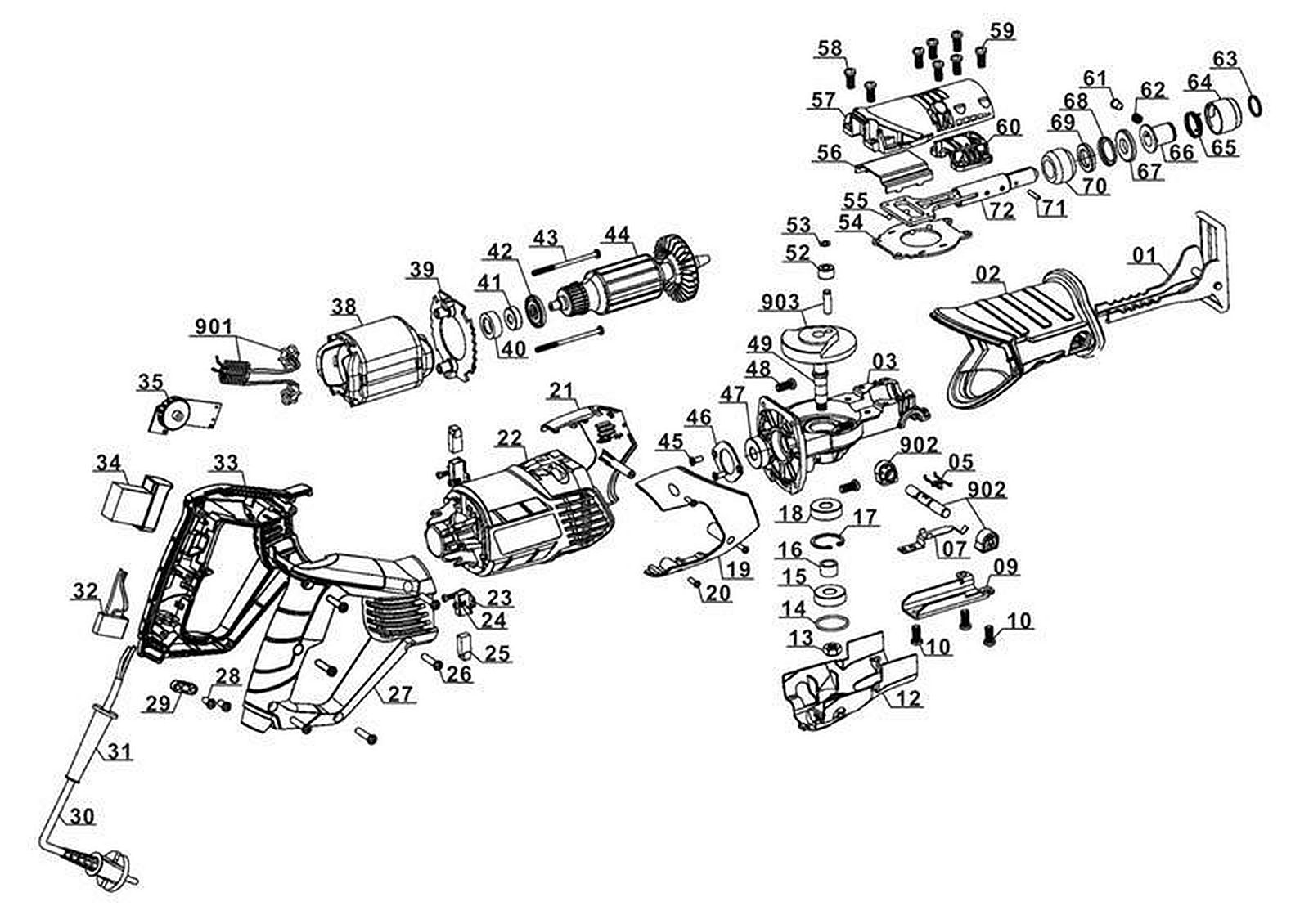

Запасные части и деталировка для пилы TC-AP 650 E 4326141 (Ident number 11025)

Показано с 1 по 5 из 5 (всего 1 страниц)

Таблица запчастей для пилы TC-AP 650 E 4326141 (Ident number 11025)

Позиция Артикул
1 support board 432614001001
2 rubber sleeve 432614001002
3 gear box 432614001003
5 spring 432614001005
7 spring 432614001007
9 baffle 432614001009
10 screw M4x12 432614001010
12 nether housing (Einhell Red) 432614101012
13 nut M8 432614001013
14 O-ring 432614001014
15 bearing 6000-2Z 432614001015
16 space 432614001016
17 circlip f22 432614001017
18 Bearing 6000-2Z 432614001018
19 right cover 432614001019
20 self-tapping screw ST4.2x16 432614001020
21 left cover 432614001021
22 housing (Einhell Red) 432614101022
23 brush holder 432614001023
24 brush holder screw ST3x8 432614001024
25 carbon brush (pair) 432614001025
26 self-tapping screw ST4.2x15 432614001026
27 right handle (Einhell Red) 432614101027
28 self-tapping screw ST4.2x13 432614001028
29 cable clamp 432614001029
30 power cable with plug 432614001030
31 cable sheath 432614001031
32 capacitor 0.33-F 432614001032
33 left handle (Einhell Red) 432614101033
34 switch (Black) 432614101034
35 speed controller (Black) 432614101035
38 stator 432614001038
39 wind guide 432614001039
40 bearing sleeve 432614001040
41 bearing 607-2Z 432614001041
42 dust ring 432614001042
43 self-tapping screw ST4.2x60 432614001043
44 rotor 432614001044
45 suck head bolt M5x10 432614001045
46 bearing press plate 432614001046
47 bearing 6000-2Z 432614001047
48 self-tapping screw ST4.2x20 432614001048
49 gear axis 432614001049
52 needle bearing 432614001052
53 circle 432614001053
54 gear press 432614001054
55 steel ball f4 432614001055
56 oriented piate 432614001056
57 gear box cover (Einhell Red) 432614101057
58 screw M5x16 432614001058
59 screw M5x18 432614001059
60 bearing cover 432614001060
61 pin 432614001061
62 spring 432614001062
63 spring 432614001063
64 outer collet 432614001064
65 spring 432614001065
66 inner collet 432614001066
67 plastic ring 432614001067
68 felt cover 432614001068
69 felt 432614001069
70 ball bearing 432614001070
71 pin f3 432614001071
72 reciprocating shaft 432614001072
800 saw blade for wood 432614001800
801 saw blade for metal 432614001801
901 inductance set Further spareparts available 432614001901
902 lock button set (Black) Further spareparts available 432614101902
903 gear with pin Further spareparts available 432614001903
