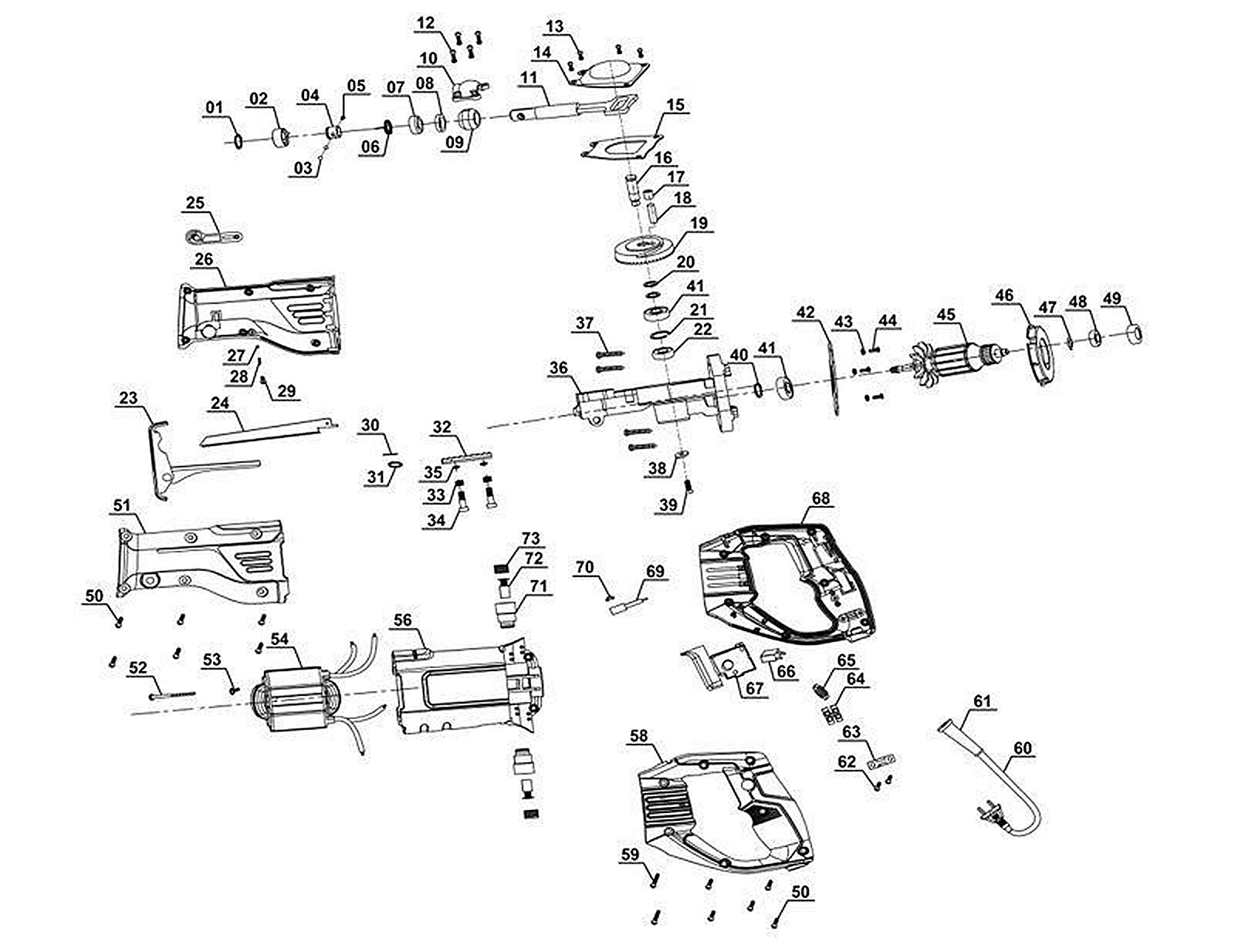

Запасные части и деталировка для пилы TE-AP 750 E 4326170 (Ident number 11017)

Показано с 1 по 2 из 2 (всего 1 страниц)

Таблица запчастей для пилы TE-AP 750 E 4326170 (Ident number 11017)

Позиция Артикул
1 Circlip for shaft 16 432617001001
2 Outer ring 432617001002
3 Steel ball Sf5.2 432617001003
4 Inner ring 432617001004
5 Pin 432617001005
6 Tension spring 432617001006
7 Plastic ring 432617001007
8 Felt ring 432617001008
9 Sliding bearing 432617001009
10 Global cover 432617001010
11 Reciprocating Lever 432617001011
12 Screw M4×10 432617001012
13 Screw M5×10 432617001013
14 Cover plate 432617001014
15 Intermediate plate 432617001015
16 Gear spindle 432617001016
17 Needle bearing 7×13×12 432617001017
18 Pin 432617001018
19 Gear 432617001019
20 Washer f10.2×f14.8×1 432617001020
21 Circlip 22 432617001021
22 Bearing 608-2Z 432617001022
23 Shoe 432617001023
24 Blade 432617001024
25 Quick change wrench 432617001025
26 Right side cover 432617001026
27 Steel ball 4 432617001027
28 Spring 432617001028
29 Screw ST4.8X10 432617001029
30 Washer f6 432617001030
31 Circlip for shaft 6 432617001031
32 Clamp for shoe 432617001032
33 Spring 432617001033
34 Screw 432617001034
35 Washer 5 432617001035
36 Gearing housing 432617001036
37 Screw ST4.2×25 432617001037
38 Washer f6×f14×1.5 432617001038
39 Screw M5×12 432617001039
40 Circlip for shaft 10 432617001040
41 Bearing 6000-2Z 432617001041
42 Bearing plate 432617001042
43 Washer f4 432617001043
44 Screw M4×8 432617001044
45 Rotor 432617001045
46 Air baffle plate 432617001046
47 Ring 432617001047
48 Bearing 607-2Z 432617001048
49 Bearing sleeve 17# 432617001049
50 Screw ST4.2×16 432617001050
51 Left side cover 432617001051
52 Screw ST4.2×60 432617001052
53 Coil 432617001053
54 Stator 432617001054
56 Housing 432617001056
58 Left handle 432617001058
59 Screw ST4.2X35 432617001059
60 Cable and plug 432617001060
61 Cable sleeve 432617001061
62 Screw ST4.2X14 432617001062
63 Cable plate 432617001063
64 Terminal 432617001064
65 Rectangle inductor 432617001065
66 Capacitor 0.33 432617001066
67 Switch 432617001067
68 Right handle 432617001068
69 LED lamp 432617001069
70 Lamp cover 432617001070
71 Carbon brush holder (pair) 432617001071
72 Carbon brush (pair) 432617001072
73 Carbon brush cap (pair) 432617001073
99 color box 432617001099
