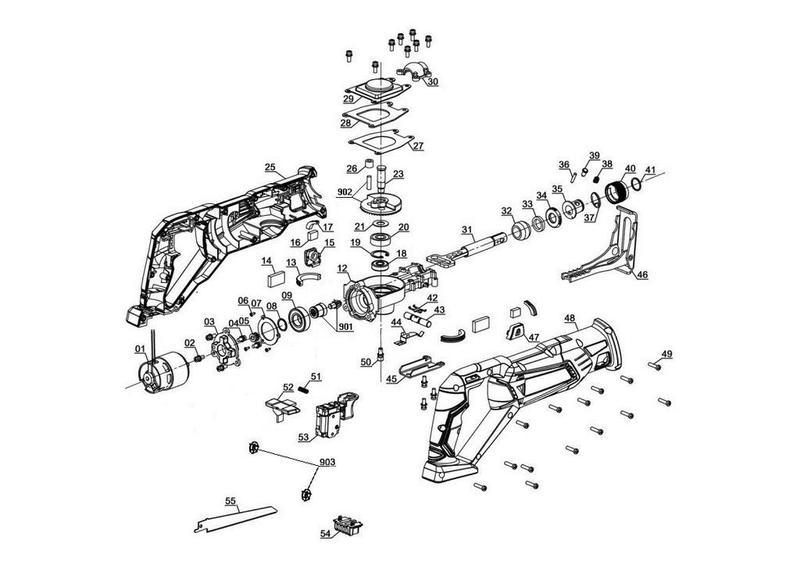

Запасные части и деталировка для пилы PXC TE-AP 18 Li-Solo 4326300 (Ident number 21031)
Таблица запчастей для пилы PXC TE-AP 18 Li-Solo 4326300 (Ident number 21031)
Позиция | Артикул | |
1 | motor | 432630002001 |
2 | M4x12 Cross recessed pan head | 432630002002 |
3 | motor seat | 432630002003 |
4 | M4x10 Cross recessed pan head | 432630002004 |
5 | motor gear | 432630002005 |
6 | M3x10 Cross recessed pan head | 432630002006 |
7 | Press plate for bearing | 432630002007 |
8 | stop collar | 432630002008 |
9 | Ball bearing 6002-2Z | 432630002009 |
12 | gear box housing | 432630002012 |
13 | Rubber ring | 432630002013 |
14 | Rubber block | 432630002014 |
15 | Unlock button for shoe | 432630002015 |
16 | Rubber block | 432630002016 |
17 | Rubber ring | 432630002017 |
18 | Ball bearing 6000-2Z | 432630002018 |
19 | Circlips for hole | 432630002019 |
20 | Ball bearing 608-2Z | 432630002020 |
21 | Washer | 432630002021 |
23 | Gear shaft | 432630002023 |
25 | Left housing | 432630002025 |
26 | roller | 432630002026 |
27 | Sealing gasket for gearbox | 432630002027 |
28 | Intermediate Plate | 432630002028 |
29 | Cover plate of gearbox | 432630002029 |
30 | Spherical gland | 432630002030 |
31 | Reciprocating rod | 432630002031 |
32 | Sliding bushing | 432630002032 |
33 | Felt seal | 432630002033 |
34 | Plastic ring | 432630002034 |
35 | Inner ring | 432630002035 |
36 | Round pin | 432630002036 |
37 | Helical torsion spring | 432630002037 |
38 | Compression spring | 432630002038 |
39 | Pin | 432630002039 |
40 | Outer ring | 432630002040 |
41 | stop collar | 432630002041 |
42 | Spring plate for spindle | 432630002042 |
43 | Spindle lock for shoe | 432630002043 |
44 | Spring plate for shoe | 432630002044 |
45 | Pressplate for shoe | 432630002045 |
46 | Shoe assembly | 432630002046 |
47 | Lock button for shoe | 432630002047 |
48 | Right housing | 432630002048 |
49 | ST4x14 Cross recessed pan head | 432630002049 |
50 | M5x14 Hexagonal socket head M | 432630002050 |
51 | Compression spring | 432630002051 |
52 | Safety button | 432630002052 |
53 | Switch module | 432630002053 |
54 | Battery contact plate | 432630002054 |
55 | Recip saw blade | 432630002055 |
99 | color box | 432630003099 |
800 | Wiring | 432630002800 |
804 | EVA plate | 432630002804 |
805 | EVA plate | 432630002805 |
901 | Pinion assembly Further spareparts available | 432630002901 |
902 | Gear assembly Further spareparts available | 432630002902 |
903 | Inductance assembly Further spareparts available | 432630002903 |
