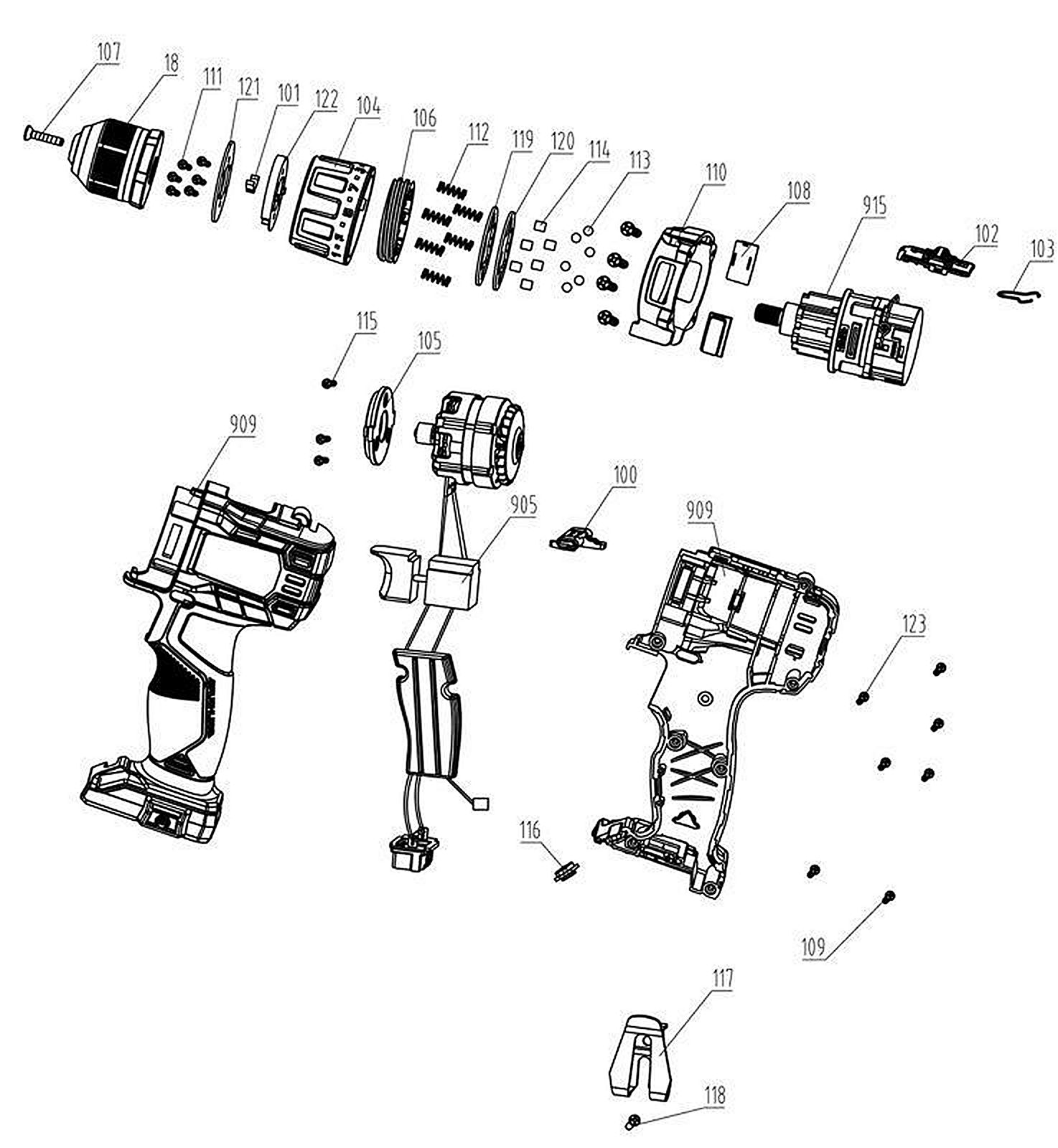

Запасные части и деталировка для шуруповерта PXC TE-CD 18/50 Li BL-Solo 4513887 (Ident number 11019)
Таблица запчастей для шуруповерта PXC TE-CD 18/50 Li BL-Solo 4513887 (Ident number 11019)
Позиция | Артикул | |
18 | keyless chuck - quick clamp | 451388701018 |
100 | switch left/right hand motion | 451388701100 |
101 | spring | 451388701101 |
102 | sliding plate | 451388701102 |
103 | clamp spring | 451388701103 |
104 | torque adjustment ring | 451388701104 |
105 | engine mount | 451388701105 |
106 | threaded ring | 451388701106 |
107 | chuck attachment screw M6 x 20 | 451388701107 |
108 | rubber band | 451388701108 |
109 | screw A ST2,9 x 14 | 451388701109 |
110 | cover | 451388701110 |
111 | screw ST3 x 20 | 451388701111 |
112 | clutch spring | 451388701112 |
113 | ball | 451388701113 |
114 | bolt | 451388701114 |
115 | screw ST2,9 x 8 | 451388701115 |
116 | transparent LED cover | 451388701116 |
117 | removable holding clip | 451388701117 |
118 | screw M4 x 11 | 451388701118 |
119 | non standart washer A | 451388701119 |
120 | non standart washer B | 451388701120 |
121 | washer | 451388701121 |
122 | gear cover | 451388701122 |
123 | screw B ST3 x 16 | 451388701123 |
905 | Complete Engine Assembly | 451388701905 |
909 | Housing Assembly | 451388701909 |
915 | Complete Drive Unit Assembly | 451388701915 |
