Запасные части и деталировка для торцовочной пилы TC-SM 2131/1 Dual 4300390 (Ident number 21032)


Показано с 1 по 2 из 2 (всего 1 страниц)

Таблица запчастей для пилы TC-SM 2131/1 Dual 4300390 (Ident number 11019)

Позиция Артикул
3 hex bolt M10x30 430083001003
4 hex thin nutM10 430083001004
5 turnplate (Einhell Classic) 430083503005
6 lnner hex screw M6x12 430083001006
7 saw cover locking knob / M6 430039003007
8 rod pin prss spring 430083001008
9 rocking arm pin 430083001009
10 angle rod pin 430083001010
11 rocking arm angle hand 430083001011
12 flat washer4 430083001012
13 Spring washer 4 430083001013
14 cross panhead screw M4x10 430083001014
20 cross panhead screw M4x10 430083001020
21 kerf board 430083001021
22 turnplate pointer 430083001022
23 cross panhead screw M5x16 430083001023
24 spring washer5 430083001024
25 flat washer5 430083001025
26 waveness spring washer10 430083001026
27 hex bolt M10x30 430083001027
28 backing bearer 430083001028
29 inner hex screw M10x10 430083001029
30 ball spring 430083001030
31 ballF8 430083001031
32 backing (Einhell Red) 430039001032
33 back bearing pole folder 430083001033
34 spring washer4 430083001034
35 cross panhead screwM4x8 430083001035
36 back bearing pole base 430083001036
37 cotterF2x10 430083001037
38 back bearing pole 430083001038
39 table extension 430039001039
46 locking screw 430083001046
47 flat washer10 430083001047
48 hex locking nut M10 430083001048
49 slide bar 430039001049
50 flat washer6 430083001050
51 lnner hex screw M6x16 430083001051
52 support left panel 430039001052
53 locking screwM6x10 430083001053
54 rocking arm angle label 430083001054
69 open circlip 16 430083001069
81 flat washer 10 430083001081
82 hex thin nut M10 430083001082
83 flat washer 10 430083001083
88 lnner hex locating screw M5x8 430083001088
89 pulling pole end base (Red) 430083501089
90 cable wire dip 430083001090
91 flat washer 5 430083001091
92 cross panhead screw M5x10 430083001092
93 big flat washer6 430083001093
94 big twisting spring 430083001094
95 pin arbor 430083001095
96 support right panel 430039001096
97 cross panhead screw M6x8 430083001097
98 dock panel locking screw 430083001098
111 link screw 430083001111
114 outside board of saw blade 430083001114
115 saw blade 430083501115
116 inner board of saw blade 430083001116
117 name plate 430083001117
118 cross panbead screw M5x16 430083001118
119 inner locking washer5 430083001119
120 bearing clamp plate 430083001120
128 cross panbead screw M4x10 430083001128
129 spring washer4 430083001129
130 flat washer4 430083001130
132 saw blade cover 430083001132
133 bearing 6201-2Z 430083001133
134 pressboard of rotor bearing 430083001134
135 nut M6 430083001135
136 cable wire clamp 430083001136
137 power cord 430083001137
138 flat washer5 430083001138
139 cross panhead screw M5x10 430083001139
140 clamping knob M6x65 430039003140
141 cable jacket 430083001141
142 pressboard 430083001142
143 self-tapping screw st4.2x13 430083001143
144 laser line 430083001144
145 below handle 430083001145
146 self-tapping screw st4.2x13 430083001146
147 twain join implement 430083001147
148 transformer 430083001148
149 capacitor0.33uF 430083001149
150 top handle 430083001150
151 self-tapping screw st4.8x32 430083001151
152 handle 430083001152
153 self-tapping screw st4.8x38 430083001153
154 flat washer5 430083001154
155 spring washer5 430083001155
156 cross panhead screw M5x30 430083001156
157 switch 430083001157
158 switch button 430083001158
159 bless spring of switch button 430083001159
160 microswitch 430083001160
161 self-tapping screw st4.2x16 430083001161
162 cross panhead screw M5x30 430083001162
163 spring washer5 430083001163
164 flat washer5 430083001164
165 wind blade 430083001165
166 rotor 430083502166
167 bearing 608-RS 430083001167
168 washer 16 430083001168
169 bearing 430083001169
170 wind guide 430083001170
171 self-tapping screw st4.2x70 430083001171
172 stator 430083001172
173 pull loop 430083001173
174 housing 430083502174
175 brush holder(pair) 430083001175
176 carbon brush(pair) 430083001176
177 brush holder end cap 430083001177
178 cross flat head screw M4x8 430083001178
179 spring washer4 430083001179
180 cross panhead screw M4x8 430083001180
181 locking pin pressboard 430083001181
182 locking pin 430083001182
183 locking press spring 430083001183
184 name plate 430083001184
191 fiat washer5 430083001191
192 spring washer5 430083001192
193 cross panhead screw M5x12 430083001193
196 cage spanner 6mm 430083001196
800 front foot left 430083001197
801 back foot right 430083001198
802 back foot left 430083001199
803 front foot right 430083001200
804 screw for foot 430083001201
806 washer for foot 430083001203
807 spring washer for foot 430083001204
808 cage spanner 5mm 430083001205
809 aluminium insert 430083503809
810 cross screw for aluminium inse 430083503810
811 dust funnel 430039001811
812 screw for table extension 430039001812
820 wind guide (new version) 430083001820
901 workpiece clip assembly Further spareparts available 430039003901
902 pulling pole assembly Further spareparts available 430039003902
903 rocking arm assembly Further spareparts available 430039003903
904 rocking arm spanner assembly Further spareparts available 430039003904
905 active cover link asssembly Further spareparts available 430039002905
906 self-lock button assy. Further spareparts available 430083001906

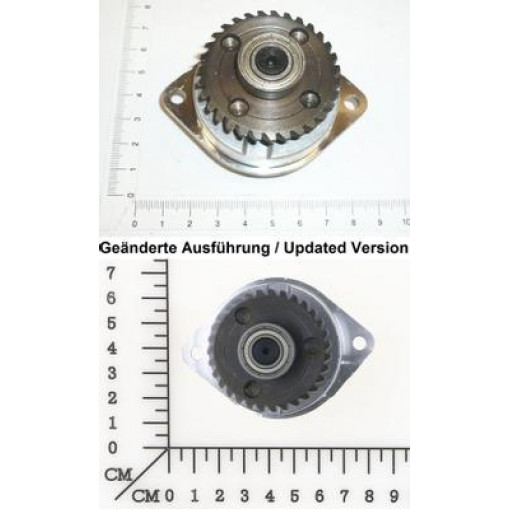

907 gear box assy. Further spareparts available 430083502907
908 locking handle assembly M10x36 Further spareparts available 430039003908
909 dust bag assembly Further spareparts available 430039003909
910 screw for foot with washers Further spareparts available 430083001910
911 lnner hex screw M8x16-L with Further spareparts available 430083001911
912 turnplate locking pole assembl Further spareparts available 430083001912
